"***NEW*** Technology of Wind
Turbines" |
|
|
 |
|
500W to 50kW Wind
Turbines FD
Models |
|
 |
|
Model |
ASW.25-400W |
ASW.25-600W |
ASW.2.7-500W |
ASW.3.1-1KW |
ASW.3.8-2KW |
ASW.4.6-3KW |
ASW.6.4-5KW |
ASW.8.0-10KW |
ASW.9.0-20KW |
ASW.10.0-30KW |
ASW.12.0-50KW |
|
Rated Power |
400W |
600W |
500W |
1KW |
2KW |
3KW |
5KW |
10KW |
20KW |
30KW |
50KW |
|
Maximum Output Power
(W) |
600 |
800 |
1000 |
2000 |
3200 |
4500 |
7500 |
15000 |
28000 |
45000 |
75000 |
|
Battery Bank Voltage
(Vdc) |
12 |
24 |
24 |
60 |
120 |
180 |
240 |
240 |
240 |
360 |
400 |
|
System output voltage
(Vdc) |
12 |
24 |
110/220 |
110/220 |
110/220 |
110/220 |
110/220/380 |
110/220/380 |
220/380 |
380 |
380 |
|
Start-up wind speed
(m/s) |
2.5 |
2.5 |
3 |
3 |
3 |
2.5 |
2.5 |
3 |
3 |
2.5 |
2 |
|
Rated wind speed (m/s) |
11 |
11 |
7 |
9 |
9 |
10 |
10 |
10 |
11.5 |
11 |
11 |
|
Working wind speed
(m/s) |
3-25 |
3-25 |
3-25 |
3-25 |
3-25 |
3-25 |
3-25 |
3-25 |
3-25 |
3-25 |
2.5-25 |
|
Survival wind speed
(m/s) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Generator efficiency |
>0.8 |
>0.8 |
>0.78 |
>0.8 |
>0.8 |
>0.8 |
>0.8 |
>0.85 |
>0.85 |
>0.92 |
>.92 |
|
Wind energy utilizing
ratio (cp) |
0.4 |
0.4 |
0.48 |
0.45 |
0.45 |
0.4 |
0.4 |
0.4 |
0.4 |
0.42 |
0.42 |
|
Generator type |
Permanent
Magnet Alternator |
|
Generator weight (kg) |
5.5 |
7 |
6.5 |
15 |
25 |
71.8 |
147 |
287 |
496 |
680 |
1200 |
|
Blade material /
quality |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
GRP/3 |
|
Blade diameter (m) |
1.25 |
1.25 |
2.5 |
3.1 |
3.8 |
4.8 |
6.4 |
8.0 |
9.0 |
10.0 |
12.0 |
|
Speed regulation method |
Yawning +
Electromagnetism braking |
Yawning +
Electromagnetism braking (Optional hydraulic braking) |
|
Shutting down method |
Manual +
Automatic |
|
|
|
|
SCF
Supercritical Generator Technology: |
Siemens
PLC and Touch Screen for Atlantis Wind control System: |
 |
SCF
supercritical generator technology, as the core of
Atlantis Wind turbine, has won gold award of the 37th
World Invention Exposition in Brussels Eureka, as well
as several international and national patented
certificates, including the international patents-big
series generator, and the national patents-infinitely
adjustable-speed generator, the new structure permanent
magnet generator, New permanent magnetism wind turbine
etc. This technology can widely replace the traditional
generator technology and it marks great innovation in
the field of generator technology. |
 |
|
The
touch controlling interface, matching with PLC control
module, offers users various data and images display as
well as the functions of manual and remote control.
Atlantis Wind 3kw-50kw wind turbine adopt Siemens PLC
control module of touch screen, which is capable of
quick reaction to wind signal. If any abnormal
situations occur, the controller end alarm and adjust
the running status of the wind turbine automatically to
protect the system. |
 |
SCF generator technology takes advantage of special
structure and material to make the generator operate in
critical state, which can make full use of generator’s
materials, lower in volume, weight, and improve its
working efficiency in a large extent. Atlantis Solar and
Wind applies this technology in the field of wind
turbine and has successfully developed Atlantis Wind
turbine.
Atlantis Wind SCF generator differs from traditional
ones as follows: |
Users can monitor various data like the generator rotate
speed, temperature, current voltage, power, frequency,
wind direction, wind speed etc. from the screen; user
can use the touch screen to fulfill the manual seek
wind, manual stop and forced start-up. Remote control
can also be realized by internet. |
 |
 |
Smaller size and lighter weight: 1/3 -1/5 of traditional
ones, for example, the traditional 500w generator is
25kg, while Atlantis Wind is only 6.5kg.
Higher generation efficiency: 10% to-30% higher than
traditional wind turbines; for example, the traditional
1kw wind turbine outputs 300-650w at the wind speed of
8m/s, while Atlantis Wind’s will output 800w at the same
wind speed. |
SKF
Bearing, etc. for High –Quality Atlantis Wind Turbine: |
|
Atlantis Wind turbine adopts the SKF (Svenska Kullager
Fabriken) which is produced by the largest bearing
manufacturers in the world, with the perfect internal
geometric structure, rough surface, stable inner and
outer ring, its advantage are more obvious.
Wide temperature ranges: operation in the high
temperature (150-350ºC)
Long life span, reach up to 60000-100000 hours. User may
not change the bearing during the wind turbine using. It
can greatly reduce the maintenance costs |
 |
 |
More
unique structure: Atlantis Wind SCF generator locates in
nose come easy to radiate heat and reduce wind
resistance, also suitable to operate in all weather
condition.
Easier assembly: with enough light SCF generator,
400w-2kw Atlantis Wind turbine can be assembled by
manpower, the installation and erection cost saved.
Lower noise: Atlantis Wind SCF generator, over 10% lower
than traditional ones. |
|
|
| |
 |
| |
|

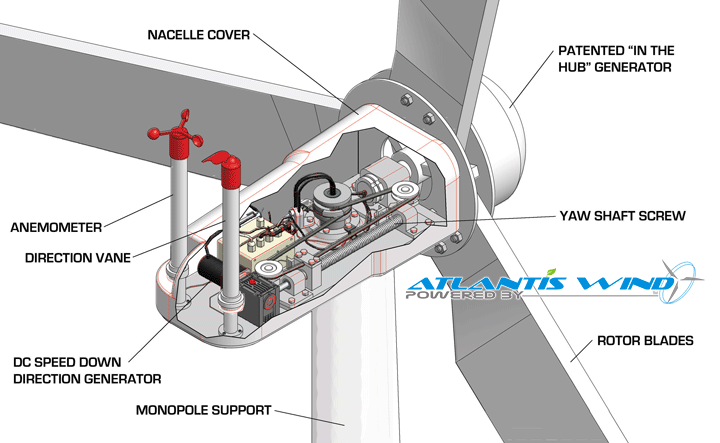

***Click
to Enlarge*** |
|
 |

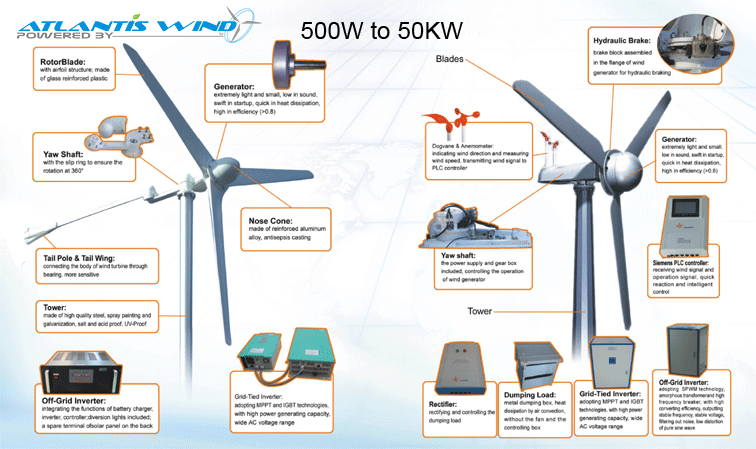

Wind
Turbine New Features:
-
Dogvane
and Anemometer for measuring wind speed and
direction.
-
Yaw shaft
controlling the operation of our wind generator
-
Multiple
protection: mechanical furling, electrical yawning,
electromagnetic braking, manual and hydraulic
braking.
-
Siemens
PLC control system offering high reliability.
-
Blades are
airfoil design , aerodynamically optimized based on
tunnel test, efficient and practical.
-
Anticorrosive processing, hot galvanizing with
powder coat preventing the turbine from salt and
Aeolian erosion.
-
CE tested
and Certified.
-
Grid-Tied
and Off -Grid design
-
Guyed
tower, free standing and hydraulic for different
demands and environments.
-
The nose
cone is designed making the generator easy to
radiate heat and reduce wind resistance.
|
| |
|

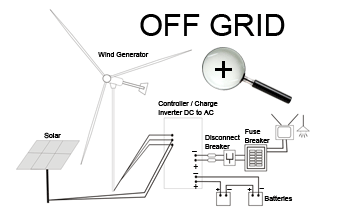

Solution 1
Distributed Off-Grid Wind Turbine System
Applicable models: 500W-50KW.
Operation principle: the electricity from wind generator
charges the batteries after being rectified and powers
the loads through the inverter.
Features: intelligent charging and discharging,
independent power supply.
|
|

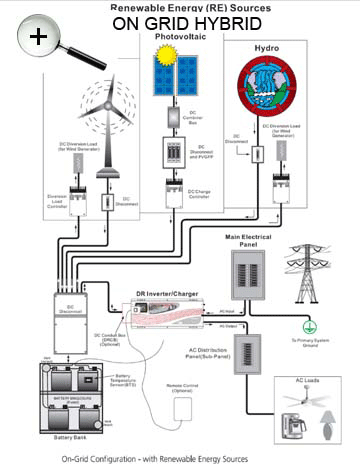

Solution 2
Wind-Solar Hybrid Power-Supply System
1. Applicable models: 500W-50KW.
2. Operation principle: the electricity from wind
generator and solar panels charges the batteries after
being rectified and powers the loads through the
inverter.
3. Features: solar energy as complementary when no wind
or low wind, wind energy as complementary when no
sunlight or no sunlight, or poor sunlight; the
wind-solar complementary with independent power supply. |
|
Solution 3
Wind-Solar-LPG Natural Gas Hybrid Power Supply System
1. Applicable models: 1KW-50KW.
2. Operation principle: the electricity from wind
generator and solar panels charges the batteries after
being rectified and powers the loads through the
invertors. LPG Natural Gas generator serves as standby when wind
and solar energy can meet the power demands.
3. Features: wind turbine and solar panel as the main
power supply with LPG Natural Gas generator as standby to
guarantee the steady power demands. |
|

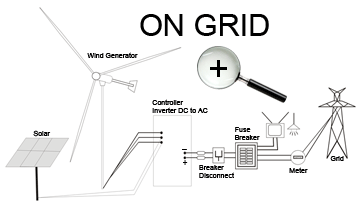

Solution 4
Distributed Grid-Tied Wind Power System
1. Applicable models: 1KW-50KW
2. Operation principle: the electricity from wind
generator outputs to the gird-tied inverter after being
rectified. When the input DC voltage reaches up to the
start-up voltage, the inverter will merge into state
grid.
3. Features: wind power merging into state grid.
|
|
Solution 5
Distributed Wind-Grid Dual Wind Power System
1. Applicable models: 1KW-50KW
2. Operation principle: the electricity from wind
generators connects with state grid; wind power has the
priority to be used. The grid automatically supplements
when without enough wind power; the surplus energy will
be consumed by dumping load.
3. Features: batteries-free configuration; the
electricity from wind generator connecting with state
grid. |
|
| |
|
SCF Supercritical Generator
Technology
SCF
supercritical generator technology, as the core of Atlantis wind
turbine, has won gold award of the 37th World
Invention Exposition in Brussels Eureka, as well as several
international and national patented certificates, including the
international patents-big series generator, and the national
patents-infinitely adjustable-speed generator, the new structure
permanent magnet generator, New permanent magnetism wind turbine
etc. This technology can widely replace the traditional
generator technology and it marks great innovation in the field
of generator technology.
SCF generator technology takes advantage of special structure
and material to make the generator operate in critical state,
which can make full use of generator’s materials, lower in
volume, weight, and improve its working efficiency in a large
extent. Atlantis Solar and Wind applies this technology in the
field of wind turbine and has successfully developed Atlantis
wind turbine.
Atlantis Wind SCF generator differs from traditional ones as
follows:
Smaller size and lighter weight: 1/3 -1/5 of traditional
ones, for example, the traditional 500w generator is 25kg, while
Atlantis wind is only 6.5kg.
Higher generation efficiency: 10% to-30% higher than traditional
ones; for example, the traditional 1kw wind turbine outputs
300-650w at the wind speed of 8m/s, while Atlantis Wind’s will
output 800w at the same wind speed.
More unique structure: Atlantis Wind SCF generator locates in
nose come easy to radiate heat and reduce wind resistance, also
suitable to operate in all weather condition.
Easier assembly: with enough light SCF generator, 400w-2kw
Atlantis Wind turbine can be assembled by manpower, the
installation and erection cost saved.
Lower noise: Atlantis Wind SCF generator, over 10% lower than
traditional ones.
Siemens PLC and Touch Screen for
Atlantis Wind control System
With
rigorous system, good integration and strong specialization,
Siemens PLC features with small volume, standard design, high
reliability as well as strong network communication ability, it
can wall realize the complex control for one or more
associations.
The touch controlling interface, matching with PLC control
module, offers users various data and images display as well as
the functions of manual and remote control.
Atlantis wind 3kw-50kw wind turbine adopt Siemens PLC control
module of touch screen, which is capable of quick reaction to
wind signal. If any abnormal situations occur, the controller
end alarm and adjust the running status of the wind turbine
automatically to protect the system.
Users can monitor various data like the generator rotate speed,
temperature, current voltage, power, frequency, wind direction,
wind speed etc. from the screen; user can use the touch screen
to fulfill the manual seek wind, manual stop and forced
start-up. Remote control can also be realized by internet.
SKF Bearing, etc. for High
–Quality Atlantis Wind turbine
Atlantis wind turbine adopts the SKF (Svenska Kullager Fabriken)
which is produced by the largest bearing manufacturers in the
world, with the perfect internal geometric structure, rough
surface, stable inner and outer ring, its advantage are more
obvious.
Wide temperature ranges: operation in the high temperature
(150-350ºC)
Long life span, reach up to 60000-100000 hours. User may not
change the bearing during the wind turbine using. It can greatly
reduce the maintenance costs. |
| |
|
|
|
