| Thermal

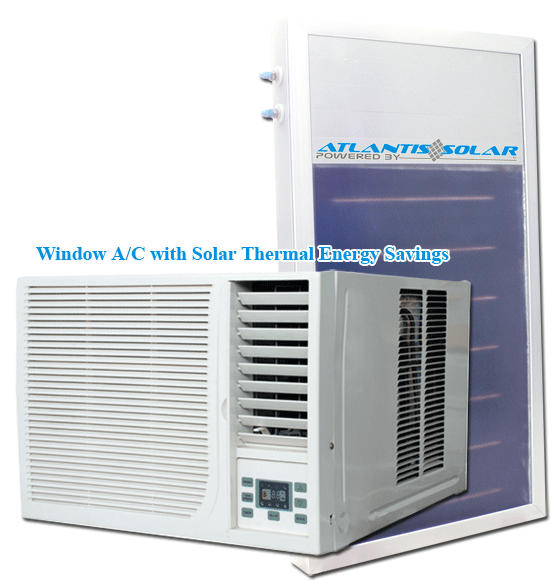

Solar Window Air Conditioner Details |
| |
 |
|
|
|
Atlantis Solar® Window Air-Conditioner absorbs
solar energy to heat the inside
medium by using a thermal
solar panel collector with copper heat conducting
inner coils inside the solar panel. The refrigerant
from the compressor goes through
the copper coil inside
the solar panel collector and undertakes a
heat exchange from the sun. The refrigerant heated
by the medium inside the solar collector will go
through a cycle inside the system cooling and
heating before entering the condenser. We use a
smaller compressor instead of standard
compressors to run our system which saves
electricity dramatically. A smaller compressor
consumes much less electricity and
works together with our solar collector to
saving electricity. |
|
|
|

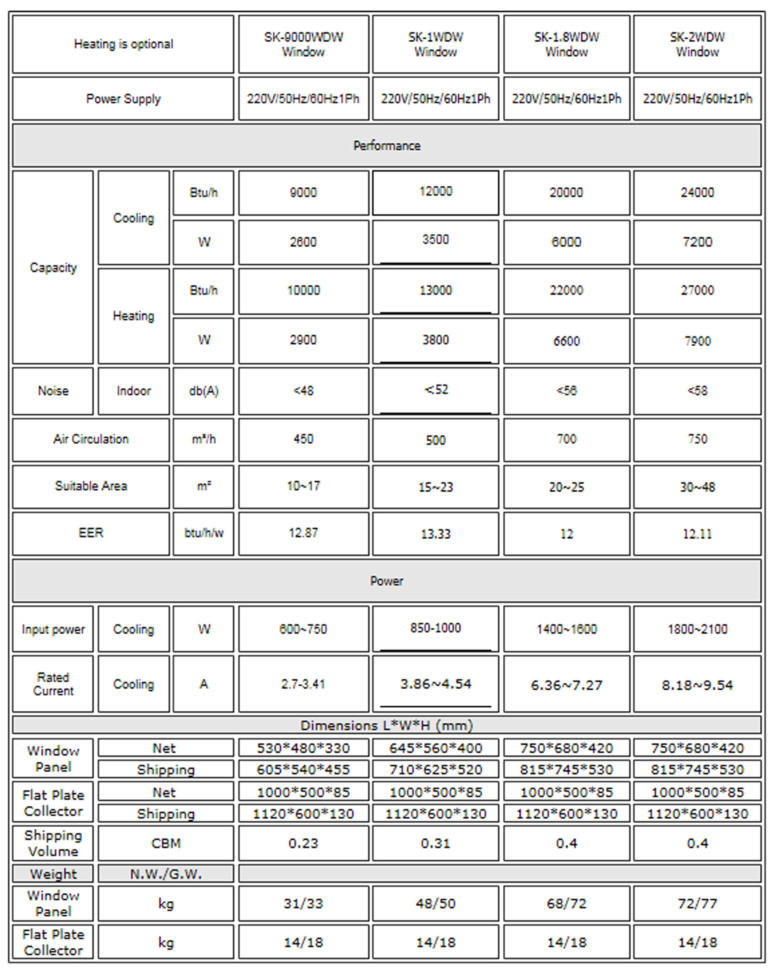

Heating is optional |
SK-9000WDW
Window |
SK-1WDW
Window |
SK-1.8WDW
Window |
SK-2WDW
Window |
|
Power Supply |
220V/50Hz/60Hz1Ph |
220V/50Hz/60Hz1Ph |
220V/50Hz/60Hz1Ph |
220V/50Hz/60Hz1Ph |
|
Performance |
|
Capacity |
Cooling
|
Btu/h |
9000 |
|
20000 |
24000 |
|
W |
2600 |
|
6000 |
7200 |
|
Heating |
Btu/h |
10000 |
|
22000 |
27000 |
|
W |
2900 |
|
6600 |
7900 |
|
Noise |
Indoor |
db(A) |
<48 |
|
<56 |
<58 |
|
Air Circulation |
m³/h |
450 |
500 |
700 |
750 |
|
Suitable Area |
m² |
10~17 |
15~23 |
20~25 |
30~48 |
|
EER |
btu/h/w |
12.87 |
13.33 |
12 |
12.11 |
|
Power |
|
Input power |
Cooling |
W |
600~750 |
|
1400~1600 |
1800~2100 |
|
Rated Current |
Cooling |
A |
2.7-3.41 |
|
6.36~7.27 |
8.18~9.54 |
|
Dimensions L*W*H (mm) |
|
Window Panel |
Net |
530*480*330 |
645*560*400 |
750*680*420 |
750*680*420 |
|
Shipping |
605*540*455 |
710*625*520 |
815*745*530 |
815*745*530 |
|
Flat Plate Collector |
Net |
1000*500*85 |
1000*500*85 |
1000*500*85 |
1000*500*85 |
|
Shipping |
1120*600*130 |
1120*600*130 |
1120*600*130 |
1120*600*130 |
|
Shipping Volume |
CBM |
0.23 |
0.31 |
0.4 |
0.4 |
|
Weight |
N.W./G.W. |
|
|
Window Panel |
kg |
31/33 |
48/50 |
68/72 |
72/77 |
|
Flat Plate Collector |
kg |
14/18 |
14/18 |
14/18 |
14/18 |
|
