Solar Air Conditioner Triple Thermal Heat Transfer Processing

Compact Pressure Plug-n-Play”

●●●2 Patents●●● "IMPORTANT" Understanding how to Measure Energy Used / Saved (BTU / Energy Used / EER / COP)...Read Here... Atlantis Solar Triple Thermal Compact Pressure Plug-n-Play Solar Air Conditioner Now Offering Free Hot Water "Including Optional Pure Drinking Water and UV Technology" UV Technology (Ultraviolet H2O and O2 Bacteria Killing Technology) *** Now Better then Ever *** Up to a 5 Year Warranty, with Many Extra plug and play options, at no Extra Cost
● Solar Air conditioners with Triple Thermal Processing ● Free High Pressure Hot Water ● Tank less High Pressure Evacuated Waterless Solar Air Conditioners for those who do not want water ● UV Technology to kill off harmful viruses and germs causing illness ● 5 Year Warranty on our Atlantis Solar Thermal Tank ● 2 Year Warranty on our high quality compressor ● 1 Year Standard Warranty on all Mechanical Parts ● Distributor can offer Extended Warranties UV Technology is the future of having a very good healthy atmosphere in side your home or business, greatly reducing chances of illness (Ask for Details)
Guaranteed Better COP - EER - Faster Cooler Air Over any Air Conditioner in the World Atlantis Solar Air Conditioners will prove to the World, that our Newest Technology will Guarantee The Below Results: ■ Outlast any other Air Conditioner of our BTU Size,,, In Quality, Life, and Energy Savings ■ Higher COP = Longer Life, Lower Energy Usage ■ Higher EER = Longer Life, Lower Energy Usage ■ 100% Faster Cooling Rate With Dual Condensers, Larger Evaporators = Longer Compressor Life, With Little to No Down Time, Lower Energy Usage, and Best of All "Large Over All Savings" ■ Longer Life over any Air Conditioner, with our Triple Thermal Assist Technology, Material Quality, and High Standard QC ■ 100% Environmentally, and User Friendly ■ Lower Operational Time to Achieve Inside Comfort Levels Much Faster, Saving Energy Usage, By Increasing The Life Span of our Atlantis Solar Air Conditioners ■ Designed to Operate in Most of the Warmest Environments in the World, with out Failure ■ Atlantis Solar Air Conditioners are designed a Plug -N- Play Technology, Making it Easy to Add Accessories, with out Making Costly Changes, Add Extra Hot Water Storage Tanks, More or Longer Evacuated Solar Tubes, Connect Atlantis Solar Air Conditioners Together, and Much More. ■ A Very Nice Feature Atlantis Solar Air Conditioners Offer - Is Free Hot Water, and Continuously Updated Technology at "NO Extra Cost"
New Atlantis Solar Triple Thermal Solar Air Conditioner Models

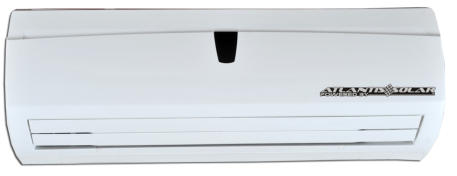

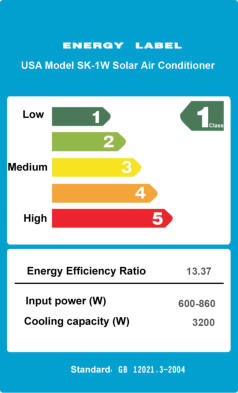

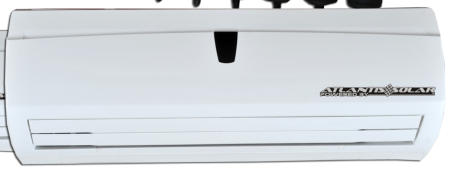

 SK-9000W Atlantis Solar Triple Thermal Solar Air Conditioner 9000Btu - SK-1W Atlantis Solar Triple Thermal Solar Air Conditioner 12000Btu - SK-1.8W Atlantis Solar Triple Thermal Solar Air Conditioner 18000Btu - SK-2W Atlantis Solar Triple Thermal Solar Air Conditioner 24000Btu - SK-2.5W Atlantis Solar Triple Thermal Solar Air Conditioner 30,000Btu
- SK-9000W x 2 Atlantis Solar Triple Thermal Solar Air Conditioner 9000Btu + 9000Btu - SK-9000W + 12000Btu Atlantis Solar Triple Thermal Solar Air Conditioner 9000Btu + 12000Btu - SK-1W + 1W Atlantis Solar Triple Thermal Solar Air Conditioner 12000Btu + 12000Btu

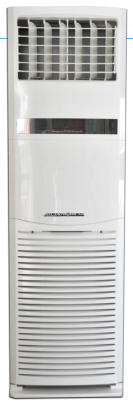

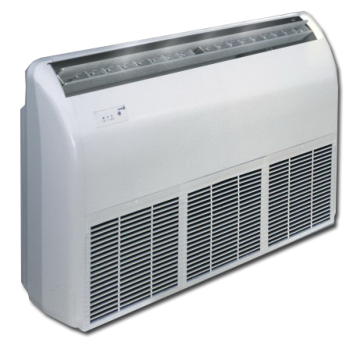

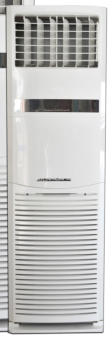

- SK-1.8F Atlantis Solar Triple Thermal Solar Air Conditioner 18,000Btu - SK-2F Atlantis Solar Triple Thermal Solar Air Conditioner 24,000Btu - SK-3.2 Atlantis Solar Triple Thermal Solar Air Conditioner 36000Btu - SK-3.5F Atlantis Solar Triple Thermal Solar Air Conditioner 42,000Btu - SK-4F Atlantis Solar Triple Thermal Solar Air Conditioner 48,000Btu
- SK-1D Atlantis Solar Triple Thermal Solar Air Conditioner 12000Btu - SK-1.8D Atlantis Solar Triple Thermal Solar Air Conditioner 18000Btu - SK-2D Atlantis Solar Triple Thermal Solar Air Conditioner 24000Btu - SK-2.5D Atlantis Solar Triple Thermal Solar Air Conditioner 30,000Btu - SK-3D Atlantis Solar Triple Thermal Solar Air Conditioner 36,000Btu - SK-4D Atlantis Solar Triple Thermal Solar Air Conditioner 48,000Btu - SK-6D Atlantis Solar Triple Thermal Solar Air Conditioner 71,000Btu

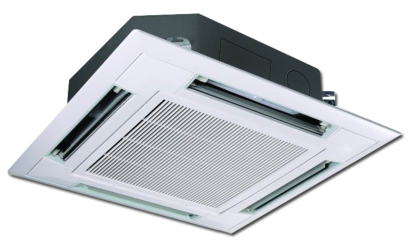

- S- SK-1.8C Atlantis Solar Triple Thermal Solar Air Conditioner 18000Btu - SK-2C Atlantis Solar Triple Thermal Solar Air Conditioner 24000Btu - SK-3.5C Atlantis Solar Triple Thermal Solar Air Conditioner 41000Btu

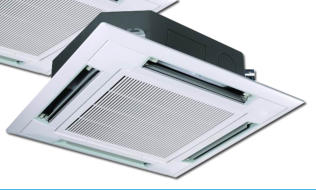

- SK-1.8C x 2 Atlantis Solar Triple Thermal Solar Air Conditioner 18000Btu + 18000Btu - SK-1.8C + 2C Atlantis Solar Triple Thermal Solar Air Conditioner 18000Btu + 24000Btu - SK-2C x 2 Atlantis Solar Triple Thermal Solar Air Conditioner 24000Btu + 24000Btu

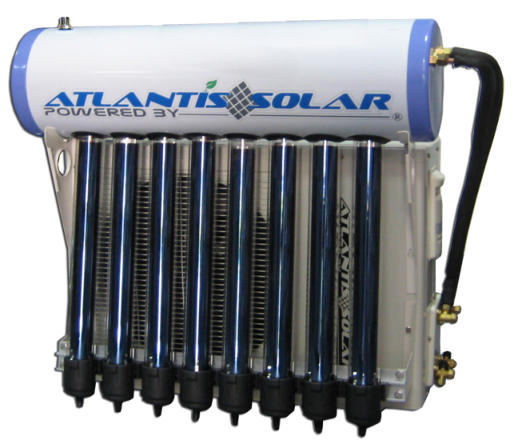

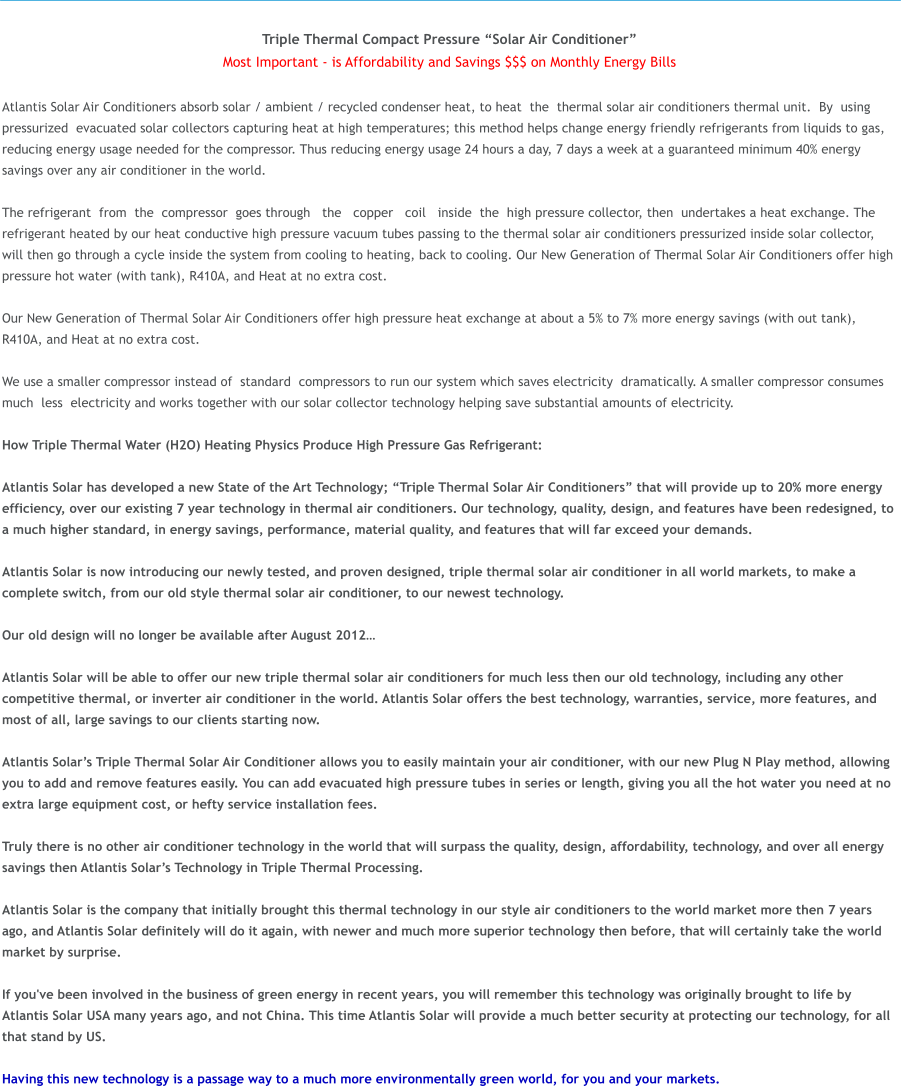

Triple Thermal Compact Pressure “Solar Air Conditioner” Most Important - is Affordability and Savings $$$ on Monthly Energy Bills  Atlantis Solar Air Conditioners absorb solar / ambient / recycled condenser heat, to heat  the  thermal solar air conditioners thermal unit.  By  using  pressurized  evacuated solar collectors capturing heat at high temperatures; this method helps change energy friendly refrigerants from liquids to gas, reducing energy usage needed for the compressor. Thus reducing energy usage 24 hours a day, 7 days a week at a guaranteed minimum 40% energy savings over any air conditioner in the world.   The refrigerant  from  the  compressor  goes through   the   copper   coil   inside  the  high pressure collector, then  undertakes a heat exchange. The refrigerant heated by our heat conductive high pressure vacuum tubes passing to the thermal solar air conditioners pressurized inside solar collector, will then go through a cycle inside the system from cooling to heating, back to cooling. Our New Generation of Thermal Solar Air Conditioners offer high pressure hot water (with tank), R410A, and Heat at no extra cost.  Our New Generation of Thermal Solar Air Conditioners offer high pressure heat exchange at about a 5% to 7% more energy savings (with out tank), R410A, and Heat at no extra cost.  We use a smaller compressor instead of  standard  compressors to run our system which saves electricity  dramatically. A smaller compressor consumes  much  less  electricity and works together with our solar collector technology helping save substantial amounts of electricity.  How Triple Thermal Water (H2O) Heating Physics Produce High Pressure Gas Refrigerant:  Atlantis Solar has developed a new State of the Art Technology; “Triple Thermal Solar Air Conditioners” that will provide up to 20% more energy efficiency, over our existing 7 year technology in thermal air conditioners. Our technology, quality, design, and features have been redesigned, to a much higher standard, in energy savings, performance, material quality, and features that will far exceed your demands.   Atlantis Solar is now introducing our newly tested, and proven designed, triple thermal solar air conditioner in all world markets, to make a complete switch, from our old style thermal solar air conditioner, to our newest technology.   Our old design will no longer be available after August 2012…  Atlantis Solar will be able to offer our new triple thermal solar air conditioners for much less then our old technology, including any other competitive thermal, or inverter air conditioner in the world. Atlantis Solar offers the best technology, warranties, service, more features, and most of all, large savings to our clients starting now.   Atlantis Solar’s Triple Thermal Solar Air Conditioner allows you to easily maintain your air conditioner, with our new Plug N Play method, allowing you to add and remove features easily. You can add evacuated high pressure tubes in series or length, giving you all the hot water you need at no extra large equipment cost, or hefty service installation fees.   Truly there is no other air conditioner technology in the world that will surpass the quality, design, affordability, technology, and over all energy savings then Atlantis Solar’s Technology in Triple Thermal Processing.  Atlantis Solar is the company that initially brought this thermal technology in our style air conditioners to the world market more then 7 years ago, and Atlantis Solar definitely will do it again, with newer and much more superior technology then before, that will certainly take the world market by surprise.  If you've been involved in the business of green energy in recent years, you will remember this technology was originally brought to life by Atlantis Solar USA many years ago, and not China. This time Atlantis Solar will provide a much better security at protecting our technology, for all that stand by US.  Having this new technology is a passage way to a much more environmentally green world, for you and your markets.
Boiling points to vapor: The boiling point of a substance is the temperature at which the vapor pressure of the liquid equals the pressure surrounding the liquid and the liquid changes into a vapor. A liquid in a vacuum has a lower boiling point than when that liquid is at atmospheric pressure. A liquid at high-pressure has a higher boiling point than when that liquid is at atmospheric pressure. In other words, the boiling point of a liquid varies depending upon the surrounding environmental pressure. For a given pressure, different liquids boil at different temperatures. The normal boiling point (also called the atmospheric boiling point or the atmospheric pressure boiling point) of a liquid is the special case in which the vapor pressure of the liquid equals the defined atmospheric pressure at sea level, 1 atmosphere. At that temperature, the vapor pressure of the liquid becomes sufficient to overcome atmospheric pressure and allow bubbles of vapor to form inside the bulk of the liquid. The standard boiling point is now (as of 1982) defined by IUPAC as the temperature at which boiling occurs under a pressure of 1 bar. The heat of vaporization is the amount of energy required to convert or vaporize a saturated liquid (i.e., a liquid at its boiling point) into a vapor. Liquids may change to a vapor at temperatures below their boiling points through the process of evaporation. Evaporation is a surface phenomenon in which molecules located near the liquid's edge, not contained by enough liquid pressure on that side, escape into the surroundings as vapor. On the other hand, boiling is a process in which molecules anywhere in the liquid escape, resulting in the formation of vapor bubbles within the liquid. Contents: 1 Saturation temperature and pressure 2 Relation between the normal boiling point and the vapor pressure of liquids 3 Properties of the elements 4 Boiling point as a reference property of a pure compound 5 Impurities and mixtures 6 See also 7 References   Saturation temperature and pressure: A saturated liquid contains as much thermal energy as it can without boiling (or conversely a saturated vapor contains as little thermal energy as it can without condensing). Saturation temperature means boiling point. The saturation temperature is the temperature for a corresponding saturation pressure at which a liquid boils into its vapor phase. The liquid can be said to be saturated with thermal energy. Any addition of thermal energy results in a phase transition. If the pressure in a system remains constant (isobaric), a vapor at saturation temperature will begin to condense into its liquid phase as thermal energy (heat) is removed. Similarly, a liquid at saturation temperature and pressure will boil into its vapor phase as additional thermal energy is applied. The boiling point corresponds to the temperature at which the vapor pressure of the liquid equals the surrounding environmental pressure. Thus, the boiling point is dependent on the pressure. Usually, boiling points are published with respect to atmospheric pressure (101.325 kilopascals or 1 atm). At higher elevations, where the atmospheric pressure is much lower, the boiling point is also lower. The boiling point increases with increased pressure up to the critical point, where the gas and liquid properties become identical. The boiling point cannot be increased beyond the critical point. Likewise, the boiling point decreases with decreasing pressure until the triple point is reached. The boiling point cannot be reduced below the "Triple Point". If the heat of vaporization and the vapor pressure of a liquid at a certain temperature is known, the normal boiling point can be calculated by using the Clausius-Clapeyron equation thus:     = the normal boiling point, K               = the ideal gas constant, 8.314 J · K−1 · mol−1               = is the vapor pressure at a given temperature, atm               = the heat of vaporization of the liquid, J/mol               = the given temperature, K               = the natural logarithm to the base Saturation pressure is the pressure for a corresponding saturation temperature at which a liquid boils into its vapor phase. Saturation pressure and saturation temperature have a direct relationship: as saturation pressure is increased so is saturation temperature. If the temperature in a system remains constant (an isothermal system), vapor at saturation pressure and temperature will begin to condense into its liquid phase as the system pressure is increased. Similarly, a liquid at saturation pressure and temperature will tend to flash into its vapor phase as system pressure is decreased. The boiling point of water is 100 °C (212 °F) at standard pressure. On top of Mount Everest, at 8,848 m (29,029 ft) elevation, the pressure is about 252 mbar (25.200 kPa) and the boiling point of water is 63 °C (145.4 °F). The boiling point decreases 1 °C every 285 m of elevation, or 1 °F every 500 ft. For purists, the normal boiling point of water is 99.97 degrees Celsius at a pressure of 1 atm (i.e., 101.325 kPa). Until 1982 this was also the standard boiling point of water, but the IUPAC now recommends a standard pressure of 1 bar (100 kPa). At this slightly reduced pressure, the standard boiling point of water is 99.61 degrees Celsius. Relation between the normal boiling point and the vapor pressure of liquids A typical vapor pressure chart for various liquids The higher the vapor pressure of a liquid at a given temperature, the lower the normal boiling point (i.e., the boiling point at atmospheric pressure) of the liquid. The vapor pressure chart to the right has graphs of the vapor pressures versus temperatures for a variety of liquids. As can be seen in the chart, the liquids with the highest vapor pressures have the lowest normal boiling points. For example, at any given temperature, methyl chloride has the highest vapor pressure of any of the liquids in the chart. It also has the lowest normal boiling point (-24.2 °C), which is where the vapor pressure curve of methyl chloride (the blue line) intersects the horizontal pressure line of one atmosphere (atm) of absolute vapor pressure. Properties of the elements: Further information: List of elements by boiling point The element with the lowest boiling point is helium. Both the boiling points of rhenium and tungsten exceed 5000 K at standard pressure; because it is difficult to measure extreme temperatures precisely without bias, both have been cited in the literature as having the higher boiling point. Boiling point as a reference property of a pure compound As can be seen from the above plot of the logarithm of the vapor pressure vs. the temperature for any given pure chemical compound, its normal boiling point can serve as an indication of that compound's overall volatility. A given pure compound has only one normal boiling point, if any, and a compound's normal boiling point and melting point can serve as characteristic physical properties for that compound, listed in reference books. The higher a compound's normal boiling point, the less volatile that compound is overall, and conversely, the lower a compound's normal boiling point, the more volatile that compound is overall. Some compounds decompose at higher temperatures before reaching their normal boiling point, or sometimes even their melting point. For a stable compound, the boiling point ranges from its Triple Point  to its critical point, depending on the external pressure. Beyond its triple point, a compound's normal boiling point, if any, is higher than its melting point. Beyond the critical point, a compound's liquid and vapor phases merge into one phase, which may be called a superheated gas. At any given temperature, if a compound's normal boiling point is lower, then that compound will generally exist as a gas at atmospheric external pressure. If the compound's normal boiling point is higher, then that compound can exist as a liquid or solid at that given temperature at atmospheric external pressure, and will so exist in equilibrium with its vapor (if volatile) if its vapors are contained. If a compound's vapors are not contained, then some volatile compounds can eventually evaporate away in spite of their higher boiling points. In general, compounds with ionic bonds have high normal boiling points, if they do not not decompose before reaching such high temperatures. Many metals have high boiling points, but not all. Very generally—with other factors being equal—in compounds with covalently bonded molecules, as the size of the molecule (or molecular mass) increases, the normal boiling point increases. When the molecular size becomes that of a macromolecule, polymer, or otherwise very large, the compound often decomposes at high temperature before the boiling point is reached. Another factor that affects the normal boiling point of a compound is the polarity of its molecules. As the polarity of a compound's molecules increases, its normal boiling point increases, other factors being equal. Closely related is the ability of a molecule to form hydrogen bonds (in the liquid state), which makes it harder for molecules to leave the liquid state and thus increases the normal boiling point of the compound. Simple carboxylic acids dimerize by forming hydrogen bonds between molecules. A minor factor affecting boiling points is the shape of a molecule. Making the shape of a molecule more compact tends to lower the normal boiling point slightly compared to an equivalent molecule with more surface area. Binary boiling point diagram of two hypothetical only weakly interacting components without an azeotrope Most volatile compounds (anywhere near ambient temperatures) go through an intermediate liquid phase while warming up from a solid phase to eventually transform to a vapor phase. By comparison to boiling, a sublimation is a physical transformation in which a solid turns directly into vapor, which happens in a few select cases such as with carbon dioxide at atmospheric pressure. For such compounds, a sublimation point is a temperature at which a solid turning directly into vapor has a vapor pressure equal to the external - pressure.
Introduction: Our products are becoming very popular throughout the world today and Atlantis Solar products will be in over 50 countries by the end of this year 2008. Our solar air conditioners are the most popular air conditioners in the world, being the only patented real thermal solar air conditioners today that actually are guaranteed to save 30% to 40% and more on energy usage 24/7. Atlantis Solar air conditioner offers the best quality and performance in the world built with all inner and outer steel, structure and components. Operating flow and heat / cold processing control copper tubing helps convert and send thermal heated GREEN gasses to the solar air conditioners Hitachi and Panasonic compressors. With our thermal solar processing helping heat the medium reducing the compressor workload, therefore saving energy usage and providing a comfortable atmosphere. Atlantis Solar air conditioners offers a guaranteed starting 40% more energy efficiency 365 days per year, the hotter it gets outside, the more energy efficient our solar air conditioners are on saving energy.  Atlantis Solar inside blower units offers a dual and triple evaporation processing sending much colder air to the inside of your home or business much faster then any air conditioner in the world. POWERFUL DEHUMIDIFICATION In order to fit the wet season, specially designed dehumidification function can remove 1.5kg water per hour (with no temperature lowering basically). Thus averts the uncomforted caused by cooling and dehumidifying simultaneously. Intelligent defrosting, and cold resistance technology In cold seasons or continuous air conditioning operation, the outdoor condenser forms a thick layer of cream on the condenser resulting in lower performance air-conditioning. A solar-functional air-conditioning intelligent defrost solution resolving this problem, always giving you the best performance. GREEN ENVIRONMENTAL PROTECTION Our air-conditioner provide with three levels of protecting system, i.e. dust filtering net with inside vacuum, electrostatic fiber and active carbon absorbing layer. They can remove peculiar smell, disinfect air and filter harmful material. Thus keeps the air fresh, and avoids the air- conditioner disease. During appraising, it has been found that in the room after half an hour running, 80% dust had been reduced and 95% bacteria have been killed. Our inside fan blower unit offers a self cleaning vacuum system that helps reduce dust and bacteria particles, immediately sending partials from the inside of your home or office to the outside. This provides a cleaner bacteria and dust free atmosphere during operation, giving you a much healthier lifestyle inside. Atlantis Solar® air-conditioner's are designed according to the Carnot Cycle theory, combined with solar and heat pump technology, a Saving Energy & Green Product. Our systems are Hybrid Solar Systems. Our solar air-conditioners can produce cooling and heating all in one. Atlantis Solar air conditioner systems will produce needed hot-water for other in home or business uses in the future, as it is a multifunction machine. Atlantis Solar air-conditioner's collect solar heat energy with its collector, the collected heat energy will be reasonably distributed in reducing energy usage in our solar air-conditioners. This provides lower power consumption and helps save cost. Superior frequency with inverter air conditioning technology in our indoor units using temperature to set it off, giving the end user continued daily energy savings. Our solar air-conditioning technology according to the actual social situation, introduce a more cost-effective solution to air-conditioning, affordable, energy-efficiency far more then regular air-conditioning units. Atlantis Solar air-conditioning heat exchangers, as the core components with in our solar technology of our air-conditioning units use heat exchange which is effective in the V-shaped, flat-plate heat exchangers increased by 20% -40% , with the refrigeration system then improving the thermal effect and providing energy savings. COMPACT DESIGN With the same power consumption, our air-conditioner outputs larger volume of cool/heat air. EFFICIENT AND QUIET Large-diameter turbofan and vortex duct are incorporated for powerful and quiet airflow. The design of scroll-compressor leads to lower noise and higher efficiency.
Atlantis Solar air conditioner running Principle A year of use with our thermal solar energy-solar air-conditioning units, offering dual-energy, solar energy as auxiliary power, according to non-physical principle of complementarily to the photoelectric effect. Combination of the traditional home air conditioning technology transfer, absorption and use a combination of thermal siphon and smaller compressor compression, providing environmentally friendly Energy-efficient refrigerants as refrigeration and heating for environmental protection and energy conservation purposes. Why solar power-saving air-conditioning… First, it uses a majority of thermal solar energy turning liquid in to gas, Secondly, it adopts to a highly efficient heat transfer system. Solar collectors / heat absorbers collect a certain amount of solar energy for air conditioning to work as a energy supplement offering an effective distribution system and greatly reducing Compressor Energy loss; intelligent controlling of the Atlantis solar air-conditioning system can automatically guarantee solar collection as part of the normal energy supply. Secondly, the use of a thread, hydrophilic aluminum foil, for the heat transfer system optimization match, reducing energy loss improving overall efficiency and effectively guaranteed results. Therefore, solar air-conditioning is much more convenient than regular air-conditioning saving you allot of energy usage. How heat provides energy and air conditioning. Read more: Operating at night and when cloudy Location Installation of Atlantis Solar air-conditioners is the most important step from us the manufacturer to our end-user. The result of installation will decide overall performance, including life and use of the solar air-conditioner. Our Atlantis Solar air conditioner units collects solar heat energy by a thermal siphon solar collector. These solar air-conditioners also can operate with efficiency at night or on cloudy days. Atlantis Solar air conditioner units use a thermal storing energy tank like a thermos in the solar collector to help store solar heat energy. Installation: Our Solar air conditioner units are similar to traditional air- conditioners. Solar collector helps provide more efficiency to the solar air conditioner when placed in the sun. Shorter piping connected to the solar collector from the outdoor and indoor unit, for better cooling results. To be installed by a professional. Installed according to the requirements of the installation manual. Install in a location for a nice appearance. Split Wall: SK-W Series AUTOMATICALLY CONTROL HORIZONTAL VANE In order to reach set temperature rapidly, when AUTO mode is selected, the position of horizontal vane is automatically set to correspond to the operation mode to perform effective operation. FLOOR STANDING SERIES MODEL NUMBER: SK-2F, SK-3F, SK-5F LONG DISTANCE AND WIDE-ANGLE AIRFLOW The grille of our cabinet air-conditioner adopts specially designed blades. Powerful airflow distribute cool or heat air to each corner of the room in a short time. AUXILIARY ELECTRIC HEATING FUNCTION Auxiliary electric heating system is adopted to ensure sufficient air-conditioning even in chilly winter.
Every one is plugging in ! ®
Copyright 2003-2017 © Atlantis Solar®, All rights reserved.

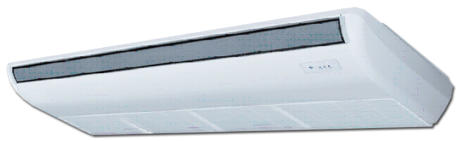

- SK-1CF Atlantis Solar Triple Thermal Solar Air Conditioner 12000Btu - SK-1.8CF Atlantis Solar Triple Thermal Solar Air Conditioner 18000Btu - SK-2CF Atlantis Solar Triple Thermal Solar Air Conditioner 24000000Btu - SK-2.8CF Atlantis Solar Triple Thermal Solar Air Conditioner 34000Btu - SK-3.5CF Atlantis Solar Triple Thermal Solar Air Conditioner 42000Btu - SK-4CF Atlantis Solar Triple Thermal Solar Air Conditioner 48000Btu
No air conditioner compares to Atlantis Solar over all annual energy savings
