Solar Air Conditoiner Details

Introduction of Atlantis Solar Air Conditioners:

Atlantis Solar Air-Conditioner absorbs solar energy to heat the inside medium by using a vacuum solar collector. The refrigerant from the compressor goes through the copper coil inside the collector and undertake a heat exchange. The refrigerant heated by the medium inside the solar collector will go through a cycle inside the system cooling and heating. We use a smaller compressor instead of standard compressors to run our system which saves electricity dramatically. A smaller compressor consumes much less electricity and works together with our solar collector to saving electricity.

Compare with current products:

* Current available technologies are neither practical nor cost-effective.

* Photovoltaic (PV) systems cost is many times more than a conventional air conditioner.

* Thermally driven absorption cooling requires costly, high-temperature collectors and undesirable cooling towers.

 Advantage:

* Atlantis Solar Air-Conditioner quite fits the seasonal demand, which means, the COP is increased as the solar energy is most plentiful in the summer.

* Freon, widely used by conventional air-conditioners, is damaging our atmosphere. Our Atlantis Solar Air-Conditioner works with our special medium and newest refrigerant which is completely environment friendly.

* Vacuum tube solar collectors were invented in the USA and China decades ago, mature technology and high quality will guarantee the performance of our Solar Air-Conditioner.

* Atlantis Solar Air-Conditioner is cost-effective. Our Solar Air-Conditioner system is produced in the USA and China, due to the low cost of the labor, land and R&D. The price of our Solar Air-Conditioner system is very competitive and affordable for our clients worldwide.

* Atlantis Solar Air-Conditioners can combine air-conditioning and solar hot water systems together, therefore enhance market attractiveness.

* Our products have all the functions as conventional Air-Conditioners do. Such as dehumidification and bacteria free ventilation to help refresh the air inside your home or business.

* Our standard products have different capacities which is more easy to design larger systems, that help fit the needs of any commercial project and make our system more customized.

* Easy installation, making operation time less consuming. Our system is compatible with conventional shafts, local conventional certified A/C installers can get installations done perfectly with 3 days training

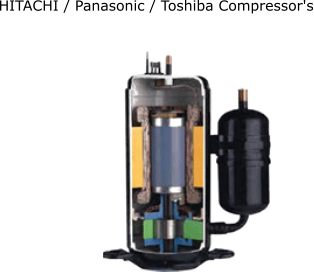

* Our products use high quality components, like HITACHI compressor, all copper tubing and treated stainless steel metal, providing top of the line quality.

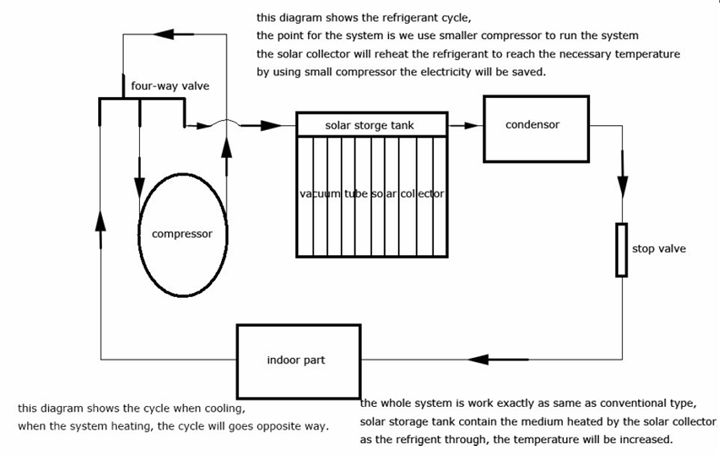

Abstract:

Solar Air-Conditioner absorb solar energy to heat the inside medium by using vacuum solar collector. The refrigerant from the compressor goes through the copper coil inside the collector and undertake a heat exchange. The refrigerant heated by the medium inside the solar collector will go cycle inside the system cooling and heating. We use a smaller compressor instead of standard compressor to run the system which saving the electricity dramatically. A smaller compressor consumes much less electricity and works together with the solar collector to saving the electricity
Installatoin
 >Click to enlarge<


DATA SHEET SK-Models now addressed as Ton not Hp.
SK-W Series (Wall Split)
SK- F Series (Floor/ Cabinet)
SK-C Series (Cassette)



SK-1W &1.5W Split Wall Solar Air Conditioner

Technical Data Parameters: Btu Size 1 Ton 11500btu & 1.5 Ton 18000btu

Heating is optional

SK-1W
Split Wall

SK-1.5W
Split Wall

Power Supply

220V/50Hz/1Ph

220V/50Hz/1Ph

Performance

Capacity

Cooling



Btu/h

11500

18000

W

3200

5200

Heating

Btu/h

12500

19000+1700

W

3500

5700+500

Noise

Indoor

db(A)

<40

48

Outdoor

db(A)

<50

56

Air Circulation

m³/h

520

≥1000

Suitable Area

15~30

25~35

EER

btu/h/w

13.37

13.23

Power

Input power

Cooling

W

600~860

1130-1360

Heating

W

600~860

1130-1360+500W

Rated Current

Cooling

A

2.7-3.9

5.13-6.18

Heating

A

2.7-3.9

5.13-6.18/8.45

Dimensions

Indoor Unit

Net

mm

845*325*228

1015*335*200

Shipping

mm

905*370*283

1065*375*255

Outdoor Unit

Net

mm

790*255*540

930*330*600

Shipping

mm

920*340*600

995*390*650

Weight

Indoor unit

Net/shipping

kg

10.5/13

14.5/18.5

Outdoor unit

Net/shipping

kg

35/38

51/56

Attachments

Dimensions

Net/shipping

mm

900*380*310

970*380*350

Weight

Net/shipping

kg

14.5/16

15.5/18



SK-2W Split Wall Solar Air Conditioner

Technical Data Parameters: Btu Size: 2 Ton 24000btu

Heating is optional

SK-2W
Split Wall

Power Supply

220V/50Hz/1Ph

Performance

Capacity

Cooling



Btu/h

24000

W

7200

Heating

Btu/h

26000+1700

W

7900+500

Noise

Indoor

db(A)

50

Outdoor

db(A)

58

Air Circulation

m³/h

1000

Suitable Area

30-50

EER

btu/h/w

12.97

Power

Input power

Cooling

W

1600-1850

Heating

W

1600-1850+500

Rated Current

Cooling

A

7.27-8.4

Heating

A

7.27-8.4/10.68

Dimensions

Indoor Unit

Net

mm

1090*325*245

Shipping

mm

1145*375*305

Outdoor Unit

Net

mm

930*330*730

Shipping

mm

1025*395*790

Weight

Indoor unit

Net/shipping

kg

18.5/19

Outdoor unit

Net/shipping

kg

61/66

Attachments

Dimensions

Net/shipping

mm

1040*380*390

Weight

Net/shipping

kg

17.5/20




Wall Split Solar Air Conditioner

Technical Data Parameters: Btu Size 3.5 Ton 41000 & 4 Ton  50000

Heating is optional

SK-3.5W
Split Wall

SK-4W
Split Wall

Power Supply

220V/50Hz

220V/50Hz

Performance

Capacity

Cooling



Btu/h

41000

48000

W

12000

14000

Heating

Btu/h

48000

55000

W

14000

16000

Noise

Indoor

db(A)

55

55

Outdoor

db(A)

65

65

Air Circulation

m³/h

1800

1900

Suitable Area

45-70

65-85

EER



13.37

13.2

SEER







Power

Input power

Cooling

W

3100

3450

Heating

W

3200

3500

Rated Current

Cooling

A

14.7

16.3

Heating

A

14.9

16.4

Dimensions

Indoor Unit

Net

mm

1650*380*270

1650*380*270

Shipping

mm

1700*420*325

1700*420*325

Outdoor Unit

Net

mm

950*355*1240

950*355*1240

Shipping

mm

1055*420*1345

1055*420*1345

Weight

Indoor unit

Net/shipping

kg

40/45

42/47

Outdoor unit

Net/shipping

kg

100/128

122/130

Attachments

Dimensions

Shipping

mm

1100*380*390

1100*380*390

Weight

Net/shipping

kg

27

30&, lt;, /SPAN>

SK-1.5F Cabinet Floor Solar Air Conditioner

Technical Data Parameters: Btu Size: 1.4 Ton 15500btu & 1.5 Ton 18000btu

Heating is optional

SK-1.4F
Cabinet

SK-1.5F
Cabinet

Power Supply

220V/50Hz/1Ph

220V/50Hz/1Ph

Performance

Capacity

Cooling



Btu/h

15500

18000

W

4500

5200

Heating

Btu/h

16000

19000+1700

W

4700

5500+500

Noise

Indoor

db(A)

45

48

Outdoor

db(A)

55

56

Air Circulation

m³/h

800

800

Suitable Area

15-25

25-35

EER

btu/h/w

11.92

13.23

SEER







Power

Input power

Cooling

W

1300

1130-1360

Heating

W

1350

1130-1360+500

Rated Current

Cooling

A

6.1

5.13-6.18

Heating

A

6.3

5.13-6.18/8.45

Dimensions

Indoor Unit

Net

mm

485*260*1687

485*260*1687

Shipping

mm

656*375*1777

656*375*1777

Outdoor Unit

Net

mm

930*330*600

930*330*600

Shipping

mm

995*390*650

995*390*650

Weight

Indoor unit

Net/shipping

kg

38/47

38/47

Outdoor unit

Net/shipping

kg

51/56

51/56

Attachments

Dimensions

Net/shipping

mm

970*380*350

970*380*350

Weight

Net/shipping

kg

18

15.5/18

SK-2F & SK-3.5F Cabinet Floor Solar Air Conditioner

Technical Data Parameters: Btu Size: 2 Ton 24000btu & 3.5 Ton 41000btu

Heating is optional

SK-2F
Cabinet

SK-3.5F
Cabinet

Power Supply

220V/50Hz/1ph

380V/50Hz/3Ph

Performance

Capacity

Cooling



Btu/h

24000

41000

W

7200

12000

Heating

Btu/h

26000+1700

44000+1700

W

7700+500

13000+500

Noise

Indoor

db(A)

52

55

Outdoor

db(A)

60

60

Air Circulation

m³/h

1100

1850

Suitable Area

30-45

60-90

EER

btu/h/w

12.97

12.81

Power

Input power

Cooling

W

1600-1850

2900-3200

Heating

W

1600-1850+500

2900-3200+500

Rated Current

Cooling

A

7.27-8.4

7.63-8.42

Heating

A

7.27-8.4/10.68

7.63-8.42/9.73

Dimensions

Indoor Unit

Net

mm

543*306*1783

543*380*1783

Shipping

mm

625*375*1855

625*455*1855

Outdoor Unit

Net

mm

930*330*730

985*355*1030

Shipping

mm

1025*395*790

1105*435*1120

Weight

Indoor unit

Net/shipping

kg

46/51

53/58

Outdoor unit

Net/shipping

kg

61/66

95/100

Attachments

Dimensions

Net/shipping

mm

1040*380*390

1180*380*470

Weight

Net/shipping

kg

17.5/20

21/24

SK-1.5C & SK-2C Cassette Solar Air Conditioner

Technical Data Parameters: Btu Size 1.5 Ton 18000btu & 2 Ton 24000btu

Heating is optional

SK-1.5C
Cassette

SK-2C
Cassette

Power Supply

220V/50Hz/1ph

220V/50Hz

Performance

Capacity

Cooling



Btu/h

18000

24000

W

5200

7200

Heating

Btu/h

19000+1700

26000+1700

W

5500+500

7700+500

Noise

Indoor

db(A)

52

52

Outdoor

db(A)

60

60

Air Circulation

m³/h

800

1150

Suitable Area

22-34

30-50

EER

Btu/h/w

13.23

12.97

Power

Input power

Cooling

W

1130-1360

1600-1850

Heating

W

1130-1860+500

1600-2350+500

Rated Current

Cooling

A

5.13-6.18

7.27-8.4

Heating

A

5.13-6.18/8.45

7.27-8.4/10.68

Dimensions

Indoor Unit

Net

mm

570*570*256

855*855*260

Shipping

mm

675*675*310

855*885*284

Panel Unit

Net

mm

650*650*30

950*950*45

Shipping

mm

1005*1005*100

1005*1005*100

Outdoor Unit

Net

mm

930*330*600

930*330*730

Shipping

mm

995*390*650

1025*395*790

Weight

Indoor unit

Net/shipping

kg

28/34

30/37

Outdoor unit

Net/shipping

kg

51/56

61/66

Attachments

Dimensions

Net/shipping

mm

970*380*350

1040*380*390

Weight

Net/shipping

kg

15.5/18

17.5/20

SK-3.5C Cassette Solar Air Conditioners

Technical Data Parameters: Btu Size 3.5 Ton 41000btu

Heating is optional

SK-3.5C
Cassette



Power Supply

380V/50Hz/3Ph



Performance

Capacity

Cooling



Btu/h

41000



W

12000



Heating

Btu/h

44000



W

13000



Noise

Indoor

db(A)

55



Outdoor

db(A)

65



Air Circulation

m³/h

1700



Suitable Area

70-100



EER

Btu/h/w

12.81



Power

Input power

Cooling

W

2900-3200



Heating

W

2900-3200+500



Rated Current

Cooling

A

7.63-8.42



Heating

A

7.63-8.42/9.73



Dimensions

Indoor Unit

Net

mm

855*855*305



Shipping

mm

855*885*325



Panel Unit

Net

mm

950*950*45



Shipping

mm

1005*1005*100



Outdoor Unit

Net

mm

985*355*1030



Shipping

mm

1105*435*1120



Weight

Indoor unit

Net/shipping

kg

53/57



Outdoor unit

Net/shipping

kg

95/100



Attachments

Dimensions

Net/shipping

mm

1180*380*470



Weight

Net/shipping

kg

21/24





SK- Series Split Wall Solar Air Conditioner VS. Conventional Air Conditioner

Btu Size: 1 Ton 11500btu

Heating is optional

Solar A/C VS. Conventional

Solar SK-1W
Split Wall

1 Ton
Split Wall

Power Supply

220V/50Hz/1Ph

220V/50Hz/1Ph

Performance

Capacity

Cooling



Btu/h

11500

11500

W

3200

3200

Heating

Btu/h

12500

-

W

3500

-

Noise

Indoor

db(A)

<40

35-42

Outdoor

db(A)

<50

54

Air Circulation

m³/h

520

500

Suitable Area

15~30

-

EER

btu/h/w

13.37

2.8

Power

Input power

Cooling

W

600~860

1140

Heating

W

600~860

-

Rated Current

Cooling

A

2.7-3.9

5.1

Heating

A

2.7-3.9

-

Dimensions

Indoor Unit

Net

mm

845*325*228

-

Shipping

mm

905*370*283

-

Outdoor Unit

Net

mm

790*255*540

-

Shipping

mm

920*340*600

-

Weight

Indoor unit

Net/shipping

kg

10.5/13

-

Outdoor unit

Net/shipping

kg

35/38

-

Attachments

Dimensions

Net/shipping

mm

900*380*310

-

Weight

Net/shipping

kg

14.5/16

-





SK- Series Split Wall Solar Air Conditioner VS. Conventional Air Conditioner

Btu Size: 1.5 Ton 18000btu

Heating is optional

Solar A/C VS. Conventional

Solar SK-1.5W
Split Wall

1.5 Ton
Split Wall

Power Supply

220V/50Hz/1Ph

220V/50Hz/1Ph

Performance

Capacity

Cooling



Btu/h

18000

18000

W

5200

5100

Heating

Btu/h

19000+1700

18300

W

5700+500

5200

Noise

Indoor

db(A)

48

37-45

Outdoor

db(A)

56

54

Air Circulation

m³/h

≥1000

800

Suitable Area

25~35

-

EER

btu/h/w

13.23

3.2

Power

Input power

Cooling

W

600~860

1590

Heating

W

1130-1360



1600

Rated Current

Cooling

A

5.13-6.18

6.8

Heating

A

5.13-6.18/8.45

6.9

Dimensions

Indoor Unit

Net

mm

1015*335*200

-

Shipping

mm

1065*375*255

-

Outdoor Unit

Net

mm

930*330*600

-

Shipping

mm

995*390*650

-

Weight

Indoor unit

Net/shipping

kg

14.5/18.5

-

Outdoor unit

Net/shipping

kg

51/56

-

Attachments

Dimensions

Net/shipping

mm

970*380*350

-

Weight

Net/shipping

kg

15.5/18

-





SK- Series Split Wall Solar Air Conditioner VS. Conventional Air Conditioner

Btu Size: 2 Ton 24000btu



Solar A/C VS. Conventional

Heating is optional

Solar SK-2W
Split Wall

2 Ton
Split Wall

Power Supply

220V/50Hz/1Ph

220V/50Hz

Performance

Capacity

Cooling



Btu/h

24000

22000

W

7200

6100

Heating

Btu/h

26000+1700

-

W

7900+500

-

Noise

Indoor

db(A)

50

43-47

Outdoor

db(A)

58

56

Air Circulation

m³/h

1000

900

Suitable Area

30-50

-

EER

btu/h/w

12.97

2.9

Power

Input power

Cooling

W

1600-1850

2190

Heating

W

1600-1850+500

-

Rated Current

Cooling

A

7.27-8.4

9.4

Heating

A

7.27-8.4/10.68

-

Dimensions

Indoor Unit

Net

mm

1090*325*245

-

Shipping

mm

1145*375*305

-

Outdoor Unit

Net

mm

930*330*730

-

Shipping

mm

1025*395*790

-

Weight

Indoor unit

Net/shipping

kg

18.5/19

-

Outdoor unit

Net/shipping

kg

61/66

-

Attachments

Dimensions

Net/shipping

mm

1040*380*390

-

Weight

Net/shipping

kg

17.5/20

-



SK- Series Cabinet Floor Solar Air Conditioner VS. Conventional Air Conditioner

Btu Size: 3.5 Ton 41000btu



Solar A/C VS. Conventional

Heating is optional

SK-3.5F Cabinet

SK-3.5F Cabinet

Power Supply

380V/50Hz/3Ph

380V/50Hz/3Ph

Performance

Capacity

Cooling



Btu/h

41000

41000

W

12600

12600

Heating

Btu/h

44000+1700

43000

W

13000+500

12600

Noise

Indoor

db(A)

55

57

Outdoor

db(A)

60

61

Air Circulation

m³/h

1850

1500

Suitable Area

60-90

-

EER

btu/h/w

12.81

3.1

Power

Input power

Cooling

W

2900-3200

5145

Heating

W

2900-3200+500

4515

Rated Current

Cooling

A

7.63-8.42

-

Heating

A

7.63-8.42/9.73

-

Dimensions

Indoor Unit

Net

mm

543*380*1783

-

Shipping

mm

625*455*1855

-

Outdoor Unit

Net

mm

985*355*1030

-

Shipping

mm

1105*435*1120

-

Weight

Indoor unit

Net/shipping

kg

53/58

-

Outdoor unit

Net/shipping

kg

95/100

-

Attachments

Dimensions

Net/shipping

mm

1180*380*470

-

Weight

Net/shipping

kg

21/24

-


PRODUCTS INFORMATION:

(1) WALL SPLIT MODEL NUMBER: SK-W Series

EFFICIENT & ENERGY-SAVING:

Our air conditioner is equipped with special HITACHI and Panasonic compressor with high efficiency and low noise and low power consumption. It is excellent and reliable. They avoid extra energy loss and really working high efficiently.

HITACHI COMPRESSOR

DETACHABLE & WASHABLE PANEL:

In the past, panel can't be disassembled for cleaning, difficult to clean away the dirt inside panel. The new designed front panel can be disassembled, convenient for cleaning and deeps as bright as new.

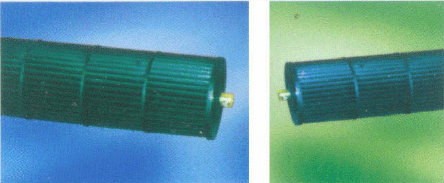

TURBO FAN WITH LARGE DIAMETER:

Stream line design of the cross flow fans with large diameter, it brings super-quiet air blowing and lowers the noise by reducing speed of rotation, while the input air strong.

AUTOMATICALLY CONTROL HORIZONTAL VANE:

In order to reach set temperature rapidly, when AUTO mode is selected, the position of horizontal vane is automatically set to correspond to the operation mode to perform effective operation.

POWERFUL DEHUMIDIFICATION:

In order to fit the wet season, specially designed dehumidification function can remove 1.5kg water per hour (with no temperature lowering basically). Thus averts the uncomfort caused by cooling and dehumidifying simultaneously.

GREEN ENVIRONMENTAL PROTECTION:

Our air-conditioner provide with three levels of protecting system, i.e. dust filtering net, electrostatic fiber and active carbon absorbing layer. They can remove peculiar smell, disinfect air and filter harmful material. Thus keeps the air fresh, and avoids the air-conditioner disease. During appraising, it has been found that in the room after half an hour running, 80% dust had been reduced and 95% bacteria have been killed.

(2) FLOOR STANDING SERIES MODEL NUMBER: SK-F Series

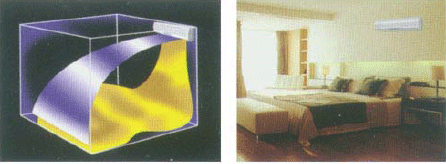

LONG DISTANCE AND WIDE-ANGLE AIRFLOW:

The grille of our cabinet air-conditioner adopts specially designed blades. Powerful airflow distribute cool or heat air to each corner of the room in a short time.

COMPACT DESIGN:

With the same power consumption, our air-conditioner outputs larger volume of cool/heat air.

EFFICIENT AND QUIET:

Large-diameter turbofan and vortex duct are incorporated for powerful and quiet airflow. The design of scroll-compressor leads to lower noise and higher efficiency.

AUXILIARY ELECTRIC HEATING FUNCTION:

Auxiliary electric heating system is adopted to ensure sufficient air-conditioning even

in chilly winter.


(3) CASSETTE SERIES MODEL NUMBER: SK-C Series

Wide angle air-blowing:

The air outlet provides wide angle airflow to reach each corner of the room, even though the indoor unit is installing at the 3.5m high.

Low noises, high efficiency:

The large diameter turbofan provides more powerful air-blowing but low noise, give you a quiet environment.

High water pump
