Atlantis
Solar Central Air Conditioning Duct System SK-D
Series
|
 |
| |
|
Main Features:
-
Atlantis Solar New State of the Art
Central Air A/C.
-
World class famous compressor for long
term operation.
-
Designed to fit anywhere.
-
Unconditional rooms with hot or cold air
ventilation in
-
your home or business.
-
High static pressure for long distance
air supply.
-
Large diameter fan for larger and longer
distance for hot or cold air supply with
very low notice level.
-
Energy rating 40% to 50% better then any
air conditioner in the world.
-
Energy efficient and more affordable for
the end user.
-
Eco friendly R410A Refrigerant for a
longer, healthier life, and more energy
efficient operation.
-
Thermal operation with thermal siphon
style vacuum or thermal panel.
|
 |
|
Excellent Cost
Performance, Saving Electricity and
Money.
Atlantis Solar rolls out higher cost
performance air conditioners. Hybrid
solar air conditioners according
to the real environmental needs in
reducing pollution, ozone depletion
and providing a better healthy
environment to live in.
-
Four - Fold Heat Exchanger
-
Hydrophilic Aluminum Foil
-
High - Quality Internal copper
Pipe
|
|
| |
|
|
|
Remote Main Features:
-
R410A Refrigerant EU compliant
-
World famous brand name
compressor for long life
-
Wide area air flow for large
rooms
-
LED colorful display for easy
reading
-
Digital automatic heat
dehumidification for those toxic mold seasons
-
Multi self protection functions
|
Easy to use Remote
Control Functions |
 |
|
Complete Intelligent Quiet Operation with
Comfort at your finger Tips |
-
Comfortable sleep mode offering healthy
energy savings
-
Automatic wind direction control
-
Intelligent dehumidification, keeps air
at a healthy comfort level
-
Intelligent auto defrost, resisting
freeze up
-
Digital e-touch, convenient for energy
savings 24/7 hours per day
-
Simulated Intelligent logical operation
-
Multiple air flows for your comfort
-
100% user friendly
|
 |
|
Thoroughly
Purified Air that Creates a Healthy
Refreshing Comfortable Place to Relax
|

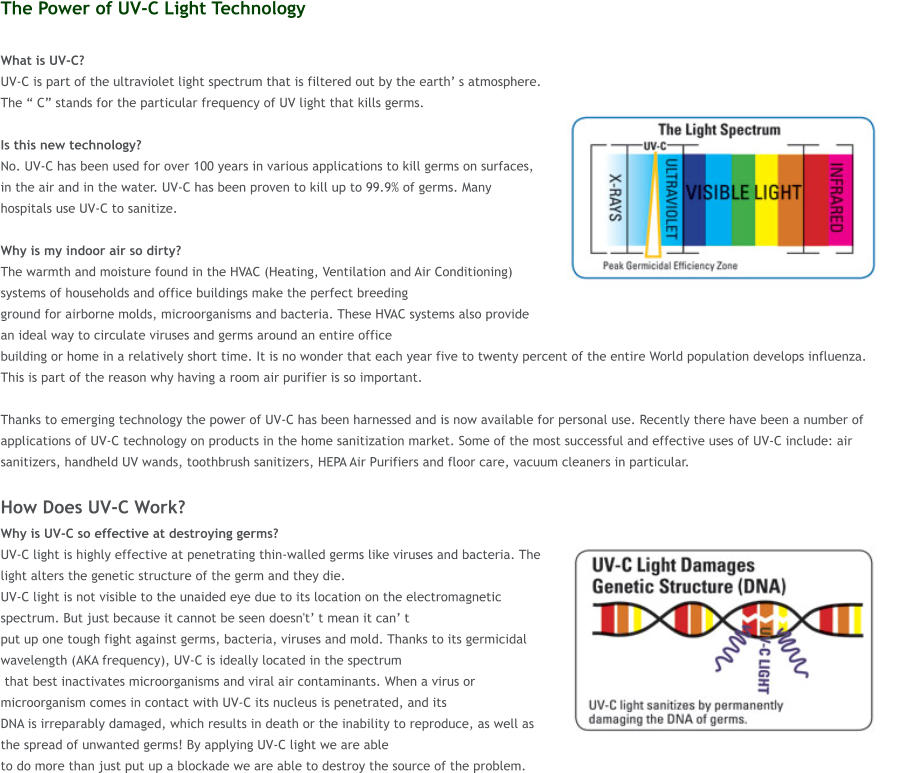

By using
multiple air purification technology, triple
air filtration and UP-Titanium Photo
Catalytic filters for antibacterial
striation in the air system progressively,
which includes micro dust filtering of
harmful substances to remove bacteria from
the air you breath and live in, this helps
keep you healthy and your room clean.
|
|
|
|
| |
|
Central Air Thermal Solar Duct Model
No. |
SK-3.5D-100NW |
SK-4D 120NW |
SK-4.5D 140NW |
|
Power Supply：220-240VAC,
1/3PH, 50Hz / 60Hz |
|
Performance |
|
|
|
|
|
|
Capacity |
Cooling |
Btu/h |
36000 |
41000 |
48000 |
|
W |
10000 |
12000 |
14000 |
|
Heating |
Btu/h |
40000 |
46000 |
55000 |
|
W |
12000 |
14000 |
16000 |
|
Noise |
Indoor |
dB(A) |
≤50 |
≤57 |
≤58 |
|
Outdoor |
dB(A) |
≤58 |
≤60 |
≤60 |
|
Air Circulation |
m³/h |
1600 |
1900 |
2000 |
|
Static Pressure |
Mpa |
120 |
120 |
120 |
|
Suitable Area |
m² |
42~67 |
50~80 |
58~93
|
|
EER |
W/W |
3.87 |
3.96 |
3.87 |
|
Btu/h/w |
13.2 |
13.51 |
13.2 |
|
Power Consumption |
|
|
|
|
|
|
Power Input |
Cooling |
W |
2400~2640 |
2900~3150 |
3500~3740 |
|
Heating |
W |
2470~2650+350 |
2900~3180+350 |
3500~3760+350 |
|
Rated Current |
Cooling |
A |
10.91~11.95 |
13.18~14.32 |
15.91~17 |
|
Heating |
A |
11.23~12.05+1.6 |
13.18~14.45+1.6 |
15.91~17.09+1.6 |
|

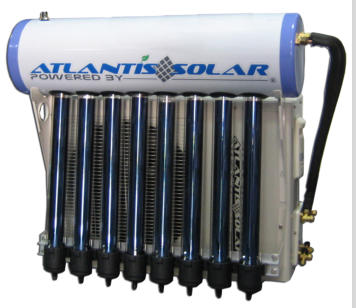

Vacuum Tube |
Diameter*Length*Pcs |
47mm*700mm*13 |
47mm*1200mm*13 |
47mm*1200mm*13 |
|
Dimensions |
|
|
|
|
|
|
Indoor Unit |
Net |
mm |
1100×740×370 |
1100×740×370 |
1100×740×370 |
|
|
|
|
|
|
|
Outdoor Unit |
Net |
mm |
950*355*835 |
950*355*1255 |
950*360*1255 |
|
Shipping |
mm |
1140*460*910 |
1140*460*1340 |
1140*460*1340 |
|
Water Tank |
Shipping |
mm |
1120*400*400 |
1120*400*400 |
1120*400*400 |
|
Vacuum Tube |
Shipping |
mm |
1270*280*210 |
1270*280*210 |
1270*280*210 |
|
Weight |
|
|
|
|
|
|
Indoor Unit |
Net/Gross |
kg |
60 |
62 |
62 |
|
Outdoor Unit |
Net/Gross |
kg |
73/76 |
95/100 |
97/102 |
|
Solar Collector |
Net/Gross |
kg |
18/21 |
23/26 |
23/26 |
|
|
|
| |
Parameters are measured in the rated working state:
when cooling, outdoor unit dry/wet-bulb temperature
35/24 °C , indoor unit dry/wet-bulb 27/19 °C; when
heating, outdoor unit dry/wet-bulb 7/6 °C , indoor
dry/wet-bulb 20/15 °C. Changes may appear according
to real working state.
When tank water temp is <65 °C. Parameters may
change due to the product improvement, please refer
to products nameplate.
Note:
(Optional) “HEATING IS ADDITIONAL PER SYSTEM”
“IMPORTANT” Standard Freon is R22, for EU Compliant
is an additional fee per unit for 410A.
Replacement Freon for R22, safe for the environment
is Dura cool R290 or 22A |
|
| |
|
