Atlantis Wind Turbines :

"High Quality at Unbeatable Prices and Built to Last"

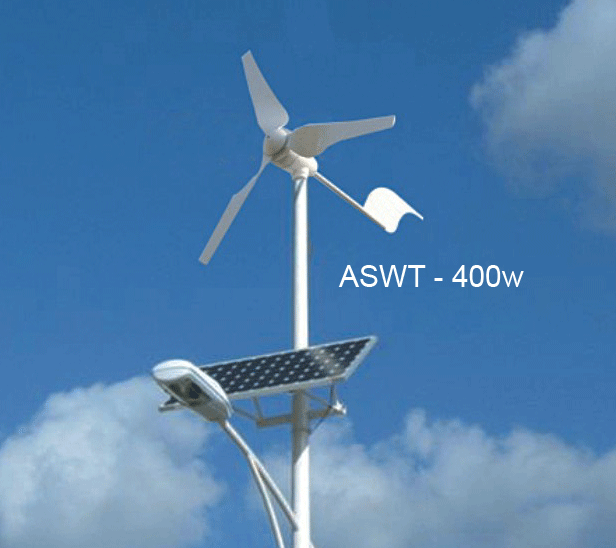

400W Wind Turbine (ASWT-400W)

Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW



Model

ASWT.25-400W
Rated Power  400W
Maximum Output Power (W) 600
Battery Bank Voltage (Vdc) 12
System output voltage (Vdc) 12
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 11
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.8
Wind energy utilizing ratio (cp) 0.4
Generator type Permanent Magnet Alternator
Generator weight (kg) 5.5
Blade material / quality GRP/3
Blade diameter (m) 1.25
Speed regulation method Yawning + Electromagnetism braking
Shutting down method Manual + Automatic

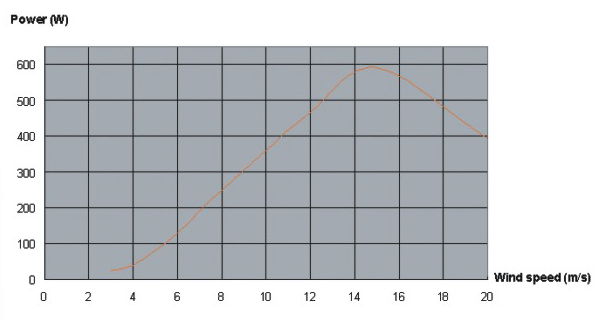

ASWT-400w Curve
