Atlantis Solar

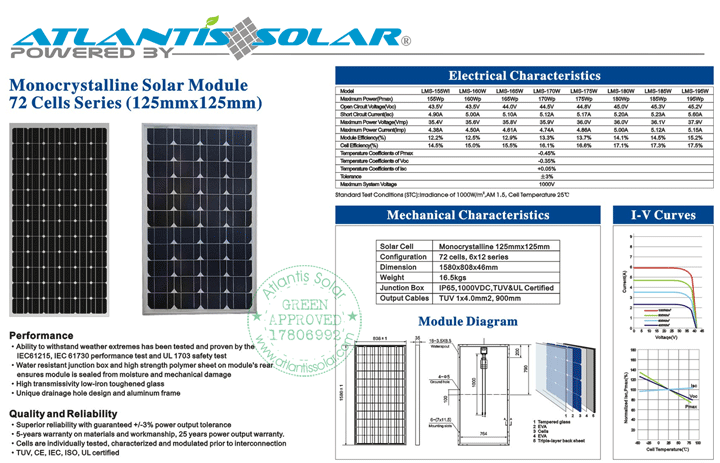

Monocrystalline and Polycrystalline Silicon Photovoltaic Module Solar Panels: |
|
"Now 2011
manufacturing up to 280W Solar Panels shipped from the USA" |
"High Quality at
Unbeatable Prices" |
| |
 |
| |
|
FEATURES:
`High Efficiency
Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
`Advanced Cell Encapsulation |
|
APPLICATIONS Residential and Commercial:
`Solar power stations
`Rural electrification
`Power supply for traffic, security, gas industry
`Home and Business power systems
`12V to 700V battery charging systems
`Other industrial and commercial applications |
|
| |
|
Model ASW-220P |
|
Pmax
Maximum power |
210Wp |
215Wp |
220Wp |
225Wp |
230Wp |
235Wp |
240Wp |
|
Efficiency |
12,91% |
13,22% |
13,53% |
13,83% |
14,14% |
14,45% |
14,75% |
|
Tolerance +0/ +3%* |
|
*Also available
tolerance +/-3%
ELECTRICAL
CHARACTERISTICS |
|
Vpm maximum power
voltage |
28,90V |
28,92V |
29,38V |
29,54V |
29,63V |
29,71V |
29,79V |
|
Ipm running at
maximum power |
7,27A |
7,40A |
7,51A |
7,64A |
7,73A |
7,91A |
8,06A |
|
Voc open circuit
voltage |
36,33V |
36,42V |
36,76V |
37,03V |
37,10V |
37,15V |
37,36V |
|
Isc short circuit
current |
8,06A |
8,12A |
8,30A |
8,40A |
8,46A |
8,68A |
8,76A |
|
NOCT standard
operating temperature |
46°C +/-2°C (114.8°F +/-
3.6°F) |
|
Tk Pmax
temperature coefficient of Pmax |
-0,45% / °C |
|
Tk Isc
temperature coefficient of Isc |
+0,06% / °C |
|
Tk voc
temperature coefficient of voc |
-0,33% / °C |
|
Maximum operational
voltage |
1.000V for IEC, 600V for
UL |
|
Junction box diodes |
3 |
|
Cable characteristics |
Length 1.000 mm.
(39.37"), section 4 mm².
According to IEC
60228 Class 5. Certifications TUV and UL |
|
Connectors |
Tyco Solarlok / Lumberg
LC4 CP (MC4 compatible); IP67; certifications TUV and UL |
|
Reverse current |
15 A |
|
Dielectric insulation
voltage |
3.000V |
|
Junction box |
Tyco 1740699 / Lumberg
LC4 JC; IP65; certifications TUV and UL |
|
All data is subject to
the Standard Test Conditions (STC). Irradiance, 1000 W/m².
AM 1.5G. Solar Spectrum.
Cell temperature: 25°C

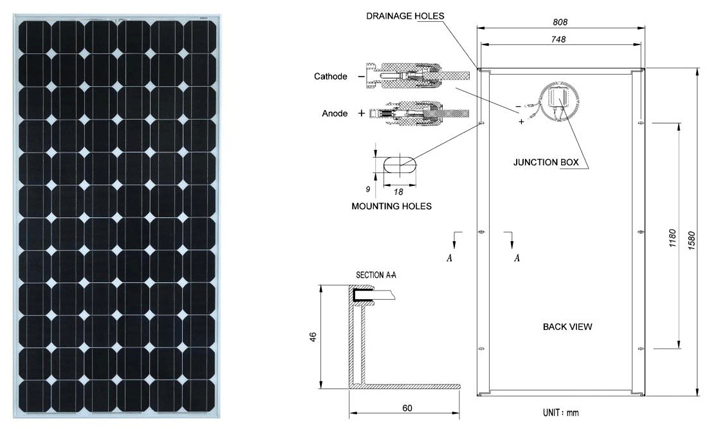

MODULE
CHARACTERISTICS
|
|
Cell type |
Polycrystalline 6" (156
x 156 mm.) |
|
Module configuration |
6 Columns x 10 Rows |
|
Dimensions |
1.653 x 990 x 44 mm.
(65.07 x 38.98 x 1.73 in) |
|
Weight |
18,3 Kg. (40.34 lb) |
|
Glass |
Tempered, with SPF
certification and low Fe content |
|
Maximum surface load
capacity |
5.400 Pa. according IEC
61215 (advanced test) |
|
Operating temperature |
-40°C to 85°C (-40°F to
176°F) |
|
Relative humidity |
0 to 100% |
|
|

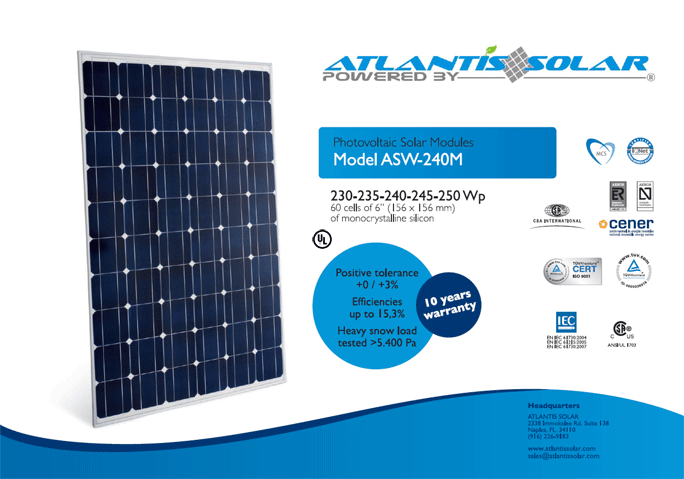

Model ASW-240M |
|
Pmax Maximum power |
230Wp |
235Wp |
240Wp |
245Wp |
250Wp |
|
Efficiency |
14,14% |
14,45% |
14,75% |
15,06 |
15,37% |
|
Tolerance
+0 / +3%* |
|
*Also
available tolerance +/-3 %
ELECTRICAL
CHARACTERISTICS
|
|
Vpm
maximum power voltage |
29,85V |
30,15V |
30,45V |
30,75V |
31,02V |
|
Ipm
running at maximum power |
7,71A |
7,79A |
7,88A |
7,97A |
8,06A |
|
Voc
open circuit voltage |
37,40V |
37,50V |
37,60V |
37,70V |
37,80V |
|
Isc
short circuit current
|
8,28A
|
8,34A |
8,40A |
8,48A |
8,52A |
|
NOCT
standard operating temperature |
47°C
+/-2°C (116.6°F +/- 3.6°F) |
|
Tk
Pmax temperature coefficient of Pmax |
-0,46% /
°C |
|
Tk
Isc temperature coefficient of Isc |
+0,06% /
°C |
|
Tk
voc temperature coefficient of voc |
-0,33% /
°C |
|
Maximum
operational voltage |
1.000V
for IEC, 600V for UL |
|
Junction
box diodes |
3 |
|
Cable
characteristics
|
Length
1.000 mm. (39.37"), section 4 mm².
According
to IEC 60228 Class 5. Certifications TUV and UL |
|
Connectors |
Tyco
Solarlok / Lumberg LC4 CP (MC4 compatible); IP67;
certifications TUV and UL |
|
Reverse
current |
15 A |
|
Dielectric
insulation voltage |
3.000V |
|
Junction
box |
Tyco
1740699 / Lumberg LC4 JC; IP65; cert. TUV and UL |
|
All data
is subject to the Standard Test Conditions (STC).
Irradiance, 1000 W/m².
AM
1.5G. Solar Spectrum. Cell temperature: 25°C
MODULE
CHARACTERISTICS
|
|
Cell
type |
Monocrystalline
6" (156 x 156 mm.) |
|
Module
configuration |
6
Columns x 10 Rows |
|
Dimensions |
1.653 x
990 x 44 mm. (65.07 x 38.98 x 1.73 in) |
|
Weight |
18,3 Kg.
(40.34 lb) |
|
Glass |
Tempered,
with SPF certification and low Fe content |
|
Maximum
surface load capacity |
5.400
Pa. according IEC 61215 (advanced test) |
|
Operating
temperature |
-40°C to
85°C (-40°F to 176°F) |
|
Relative
humidity |
0 to
100% |
|
Model ASW-280M |
|
Pmax
Maximum power |
250Wp |
260Wp |
270Wp |
280Wp |
|
Efficiency |
12,9% |
13,5% |
14,0% |
14,5% |
|
Tolerance +0/ +3%* |
|
*Also available
tolerance +/-3%
ELECTRICAL
CHARACTERISTICS |
|
Vpm maximum power
voltage |
34,64V |
34,83V |
35,30V |
35,13V |
|
Ipm running at
maximum power |
7,14A |
7,27A |
7,45A |
7,97A |
|
Voc open circuit
voltage |
43,93V |
44,15V |
44,60V |
44,73V |
|
Isc short circuit
current |
7,68A |
7,81A |
7,99A |
8,56A |
|
NOCT standard
operating temperature |
46°C +/-2°C (114.8°F +/-
3.6°F) |
|
Tk Pmax
temperature coefficient of Pmax |
-0,45% / °C |
|
Tk Isc
temperature coefficient of Isc |
+0,06% / °C |
|
Tk voc
temperature coefficient of voc |
-0,33% / °C |
|
Maximum operational
voltage |
1.000V for IEC, 600V for
UL |
|
Junction box diodes |
3 |
|
Cable characteristics |
Length 1.000 mm.
(39.37"), section 4 mm².
According to IEC
60228 Class 5. Certifications TUV and UL |
|
Connectors |
Tyco Solarlok / Lumberg
LC4 CP (MC4 compatible); IP67; certifications TUV and UL |
|
Reverse current |
15 A |
|
Dielectric insulation
voltage |
3.000V |
|
Junction box |
Tyco 1740699 / Lumberg
LC4 JC; IP65; certifications TUV and UL |
|
All data is subject to
the Standard Test Conditions (STC). Irradiance, 1000 W/m².
AM 1.5G. Solar Spectrum.
Cell temperature: 25°C
MODULE
CHARACTERISTICS
|
|
Cell type |
Polycrystalline 6" (156
x 156 mm.) |
|
Module configuration |
6 Columns x 12 Rows |
|
Dimensions |
1.971 x 980 x 45 mm.
(77.59 x 38.58 x 1.77 in) |
|
Weight |
24,5 Kg. (54.05 lbs) |
|
Glass |
Tempered, with SPF
certification and low Fe content |
|
Maximum surface load
capacity |
2.400 Pa. according IEC 61215 |
|
Operating temperature |
-40°C to 85°C (-40°F to
176°F) |
|
Relative humidity |
0 to 100% |
|
|
|
|
|
I-V CURVES
|
|
I-V
characteristics at a variety of radiation levels |
I-V
characteristics at a variety of cell temperatures |
 |
 |
| |
|
| |
 |
|
*Specifications included in this datasheet are subject
to change without prior notice. |
|
| |
|
 |
|
