"Now" a 5 Year Warranty
on all solar hot water heaters
|
|
Starting May 2011 on all
New Solar Hot Water
Heaters, Pressure and Non Pressure / Vacuum and Flat Panel |
 |
|
|
|
“NEW HOT SELLER
Desalination filtration system” |
 |
Remove salt from your water for a very low
price. Service every 2 years for less the
$10USD.
Desalination filtration system for all solar hot
water heaters or areas where salt water enters
your home or business, now offered by Atlantis
Solar USA.
Water is desalinated in order to convert salt
water to fresh water so it is suitable for
human consumption
or
irrigation.
Sometimes the process produces
table salt
as a
by-product.
Most of the modern interest in desalination is
focused on developing cost-effective ways of
providing fresh water for human use in regions
where the availability of fresh water is, or is
becoming, limited. |
|
 |
Thermal Solar Non Pressure Hot Water Heaters:
Atlantis Solar water heater relies on the
natural circulation of water between the
collector and the tank or heat exchanger.
Atlantis Solar water heaters rely on the
natural circulation of water between the
collector and the tank or heat exchanger. In
this type of installation, the tank must be
located above the collector. As water in the
vacuum tubes is heated it becomes lighter and
naturally rises into the tank, Meanwhile, cooler
water in the tank flows down to the bottom of
the vacuum tubes, causing circulation throughout
the system.
This non- pressure system water heater relies on
a natural Principle --"Thermo siphon". As
the sun's rays hit the evacuated solar collector
tubes , the temperature of the water in the
tubes rise to certain heat levels, making the
water less dense or lighter. The
hot water naturally moves up to the top of
collector and through out evacuated collector
tubes converting to the storage tank. The colder
water in water tank, then moves down to the
bottom of the collector. This process is
continuous thermal processing, and 100% natural
in heating water from the sun with evacuated
specially designed vacuum tubes.
This non-pressure solar hot water heater is an
"Open Circuit" system. By the air vent valve on
the top of the storage cylinder and the over
flow pipe in the bottom of the thermal insulated
tank that maintains open to the air. The hot
water will circulate freely with out any type of
pressure regulators.
These systems move household water or a heat -
transfer fluid through the system without pumps.
This kind of passive system has the advantages
naturally when producing hot water with out
electricity to heat or circulate water. This makes passive
systems generally more reliable, easier to
maintain, and often inexpensive.
|
|

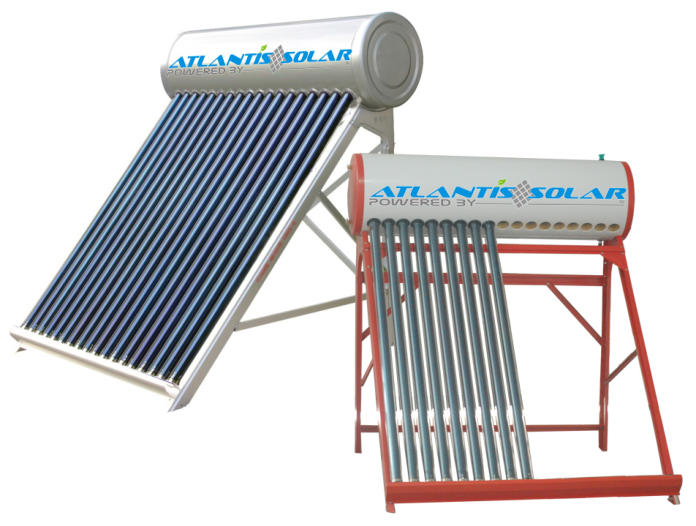

Non Pressure Models: (Stainless /
Color) |
 |
|
|
|
|
Features: |
 |
Inner tank: Stainless steel SUS304 2B |
| |
Thickness: 0.5
|
| |
Cr:17.0019.00 %
|
| |
Ni: 8.0010.00 %
|
|
Insulating layer: Foaming
polyurethane |
| |
Thickness 55 |
|
Thermal transfer rate 0.022W/m.k |
| |
Can collect solar energy efficiently by Atlantis Solar® |
| |
inclination angle design. |
|
Low price reliable
solution, Simple structure, Easy |
| |
installation. |
|
Hot water can be used
directly for, or can be used as a |
| |
pre-heat. |
|
Unique "flower petal" end cover design, integrative with |
| |
the barrel body, can be used years around
under |
| |
high temperature, no gap appears. |
|
Vacuum tube: 3.3 high borosilicate glass，
AL-SS-CU layer
|
|
|
Wide and thick galvanized steel sheet, ultra strong |
| |
corrosion resistivity. |
|
Sealing rubber: silicon
rubber. |
|
Dustproof rubber: EPDM. |
|
With galvanized steel sheet of triplet-function, it is |
| |
suitable for the flat roof,
also for the cuspidal roof, |
| |
with good applicability and
practicality. |
|
Highly efficient all glass
vacuum tube. |
|
Operation without any power
supply. |
|
Could be installed using
parallel and/or series |
| |
connections |
|
Adopts importable polyurethane, uses automatic |
| |
constant temperature high pressure bulk bubble
|
| |
technology, one-off molding,
with excellent thermal |
| |
properties. |
| |
|
| |
|
|
|
|
|

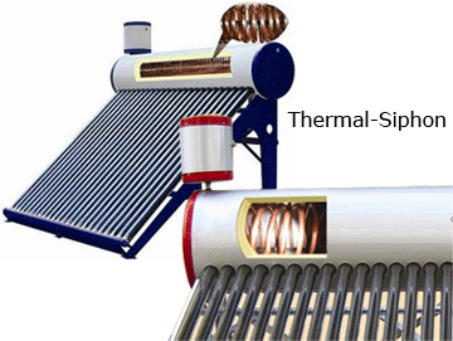

Thermo-Siphon Pressure
Solar Water Heater (Inner tank copper coil): |
 |
Copper
coil pressure and heat conductor
|
|
ASWH-2
Model |
|
Material of
inner tank:SUS304 with 0.41mm |
|
Material of
outer tank: color steel with 0.35mm |
|
Material of
frame: zinc coating with 1.3mm ,with silver color |
|
Assistant
tank: 7liter |
|
Copper coil
in the tank: diameter of copper:10-11mm
weight:7.5kg-8.5kg in the tank |
|
|
|
|

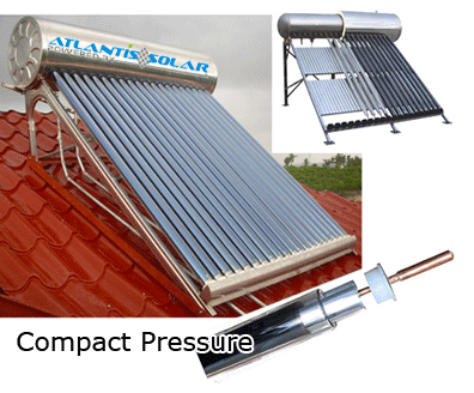

Compact Pressure Solar
Water Heater w/inner pressure water tank: |
Passive system Working Principle:
Compact pressured solar water heater system also known as a
whole unified system. Typically these systems will function by
natural convection or heat pipes to transfer the heat energy
from the collector to the tank. There is no water going through
the vacuum tubes, and if one tube broken, it will not affect the
complete system, this solar hot water heater has much better
water pressure than most known styles on the market. |
|
ASWH-4
Model |
|
Material of
inner tank is SUS304 2B (food grade) with 1.2mm
thickness. All machine welding. (inner
pressure water tank as shown in photo) |
|
Material of outer tank is
SUS304 2B with 0.4mm thickness. |
|
Material of stand frame is
stainless steel with 1.2mm thickness or Aluminum alloy
with 2.0 thickness. |
|
The thickness of
polyurethane foam is 55-60mm. |
|

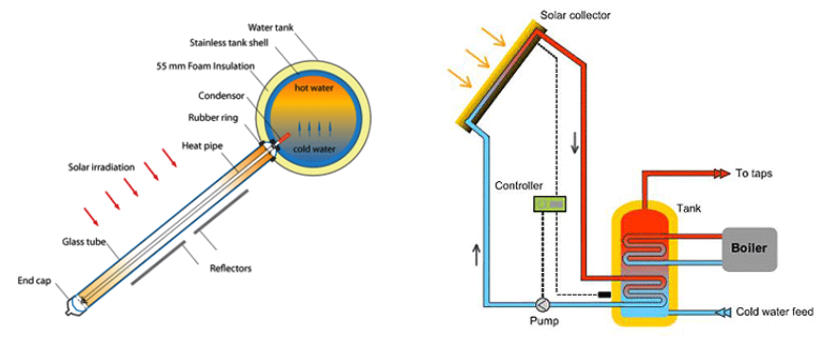

Uses heat pipe to transfer
as heat energy, there is no water in the vacuum tubes,
and it can be used in all climates. |
|
 |
|
|
|

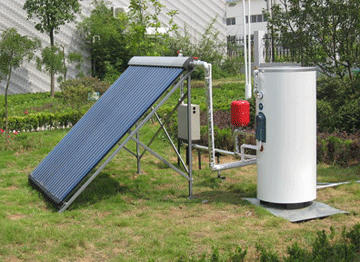

Separated High Pressure
Solar Water Heater: |
 |
 |
|
|
ASWH-3
Model: |
|
This
system includes, solar collector. storage tank working
station. |
|
|
The
solar collector and the water tank are separated , this
complete system operates under the forced pressure. |
|
|
The
solar collector could be mounted on the balcony veranda,
the the southern wall sloping roof or awning and the
water tank can be installed any where. |
|
|
The
heat pipe vacuum tube collector is a two circuit system,
free of freezing, could be used as under minus 50°
Celsius. |
|
|
The
metal super conducting vacuum heat collector is used ,
there is no water in the tubes, therefore will not
freeze or burst |
|
|
|
 |
 |
|
|
|
|

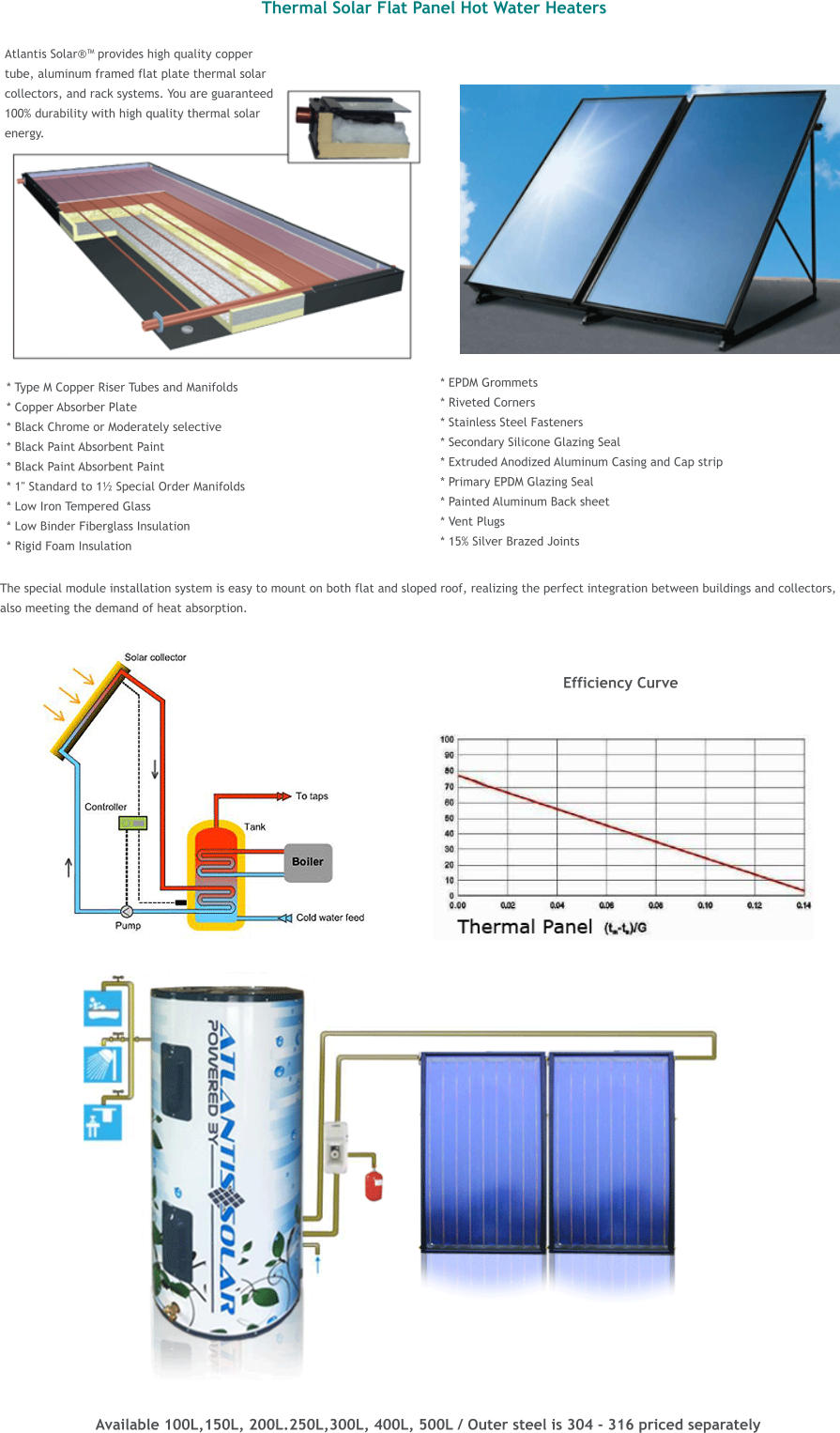

Thermal Solar Flat Panel Hot Water Heaters |
|
Atlantis Solar®™ provides high
quality copper tube, aluminum framed
flat plate thermal solar collectors,
and rack systems. You are guaranteed
100% durability with high quality
thermal solar energy. |
|
 |
 |
| |
|
|
 |
| * Type M
Copper Riser Tubes and Manifolds |
*
Riveted Corners |
| * Copper
Absorber Plate |
*
Stainless Steel Fasteners |
| * Black
Chrome or Moderately selective |
*
Secondary Silicone Glazing Seal |
| * Black
Paint Absorbent Paint |
*
Extruded Anodized Aluminum Casing and Cap strip |
| * 1"
Standard to 1½ Special Order Manifolds |
*
Primary EPDM Glazing Seal |
| * Low
Iron Tempered Glass |
*
Painted Aluminum Back sheet |
| * Low
Binder Fiberglass Insulation |
* Vent
Plugs |
| * Rigid
Foam Insulation |
* 15%
Silver Brazed Joints |
| * EPDM
Grommets |
|
The special module installation system is easy to mount
on both flat and sloped roof, realizing the perfect
integration between buildings and collectors, also
meeting the demand of heat absorption. |
|
|
|
|
Efficiency
Curve |
 |
| |
|
 |
|
Available 100L,150L,
200L.250L,300L, 400L, 500L / Outer steel is 304 - 316 priced
separately |
|
|
