Save Money $$$
Build your own high quality solar
street light "Plug and Play" design |
| 12 / 24V LED
or CFL Solar street light fixtures, controller included |
LED is Guaranteed 500% better lighting
area coverage over
High Pressure Sodium with an energy savings of 50% to 70%
|
 |
| |
|

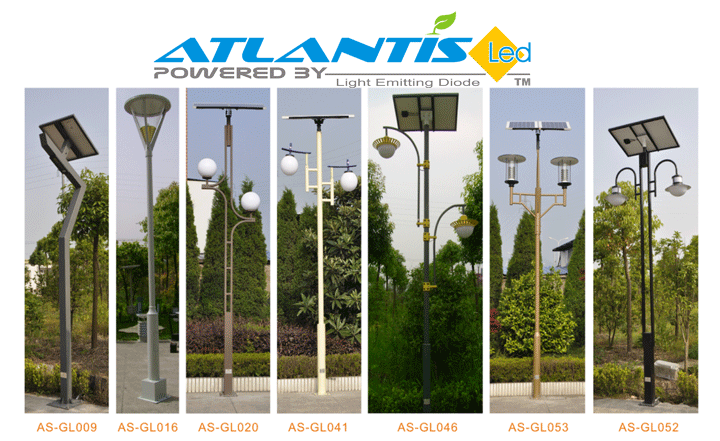

*** Street Light Styles *** |
| |
Atlantis Solar is "third generation"
providing products developed
from the latest state of the art technology in solar lighting.
Our technology benefits every country worldwide
that shares the same common needs in saving money and going
green. With the expertise and experience gained from more then
twenty years of research, Atlantis Solar provides a new concept
in amenity lighting designed for the 21st Century providing
illumination at almost any location remote from grid electricity supply,
giving you self independence to your lighting needs. It is an
innovative, environmentally friendly and independent outdoor
lighting system that is cost effective and simple to install
almost anywhere from city streets to remote areas with no
electricity.
Atlantis Solar will now be providing all parts needed to build
and assemble your own solar street lights in your own town,
city, state or country. You will now be able to
assemble or manufacture your own solar street light, from light fixtures
locate below offering 30 to 180watts luminance. All parts such
as fixtures, controllers, solar panel, batteries and pole will
be provided by Atlantis Solar at your request.
Atlantis Solar has been pioneers in the small scale solar and wind
turbine industry, designing and supplying solar and wind-pv hybrid systems
for clients worldwide in a variety of applications.
Now is the perfect opportunity to take advantage in going green
with our high quality low cost "Plug -N- Play" street light
fixtures. Included with Atlantis Solar street lights are high
quality solar controllers or ballast, depending on your lighting
applications.
|
|
|
| |
|
*** Street Light Styles *** |
|
| Atlantis Solar LED Chip Street Light
"Printable Flyers"
-Click Here- |
|
High Power Solar LED Street Light:
|
-
Rated voltage: DC12V-24V-36V
- Low
power consumption: 35w to 65w
- Long
time: 50,000h
-
High-efficiency light, Light weight, Small power
consumption, Large power factor.
-
Applicable of places: Highway; Elevated Railway;
tunnels; bridges; ports, banks; freight yard and
Building security lighting.
- High
light efficiency: power factor:
>0.9, THD<20%
-
Robust design: shockproof
|
|
| |
| High Pressure Sodium 500
watts |
LED 100 watts |
 |
 |
|
High pressure sodium left versus LED lighting right. LED
lighting is closer to true daylight because temperature can be
more precisely controlled. True to daylight translates to the
perception of greater safety in parking garages. On roadways it
means less visual fatigue. In architectural and accent lighting
LED's allow improved lighting rendition. LED's start
instantaneously and do not flicker or hum. They produce almost
no heat and maintenance is reduced because of fewer
replacements, and of course the main advantage: they require
less energy.
|
| |
|
Lighting Efficiency Comparison
Just as an
automobile's fuel efficiency is measured in miles
per gallon, light bulb efficiency is measured in
terms of lumens per watt—the amount of light
produced for each watt of electricity consumed. More
lumens per watt means more light for your money |
| |
|
Fluorescent (tubular) |
|
Life span: |
10,000 - 20,000 hours |
|
Pros: |
bulb burns cooler; very
efficient; can come in various CRI ratings; comes in
different color temperatures |
|
Cons: |
not dimmable; fixtures are
more costly; known to flicker at times. |
|
Efficiency: |
33 - 100 lumens per watt |
|
Uses: |
General, floodlights |
|
Notes: |
frequent switching on and
off reduces efficiency. |
|
|
(TOP) |
|
Compact Fluorescent |
|
Life span: |
Up to 10,000 hours |
|
|
Pros: |
efficient |
|
|
Cons: |
cost of bulb; sometimes
they can't physically fit; to replace incandescent bulbs
|
|
|
Efficiency: |
44 - 80 lumens per watt |
|
|
Uses: |
General lighting |
|
|
Notes: |
frequent switching on and
off reduces efficiency. |
|
|
|
(TOP) |
|
|
Metal Halide |
|
Life span: |
6,000 - 10,000 hours |
|
|
Pros: |
extremely efficient; give
a brilliant light; bulbs come in different color
temperatures; good color rendering. |
|
|
Cons: |
cost of both fixture and
bulb; burns hot |
|
|
Efficiency: |
60 - 125 lumens per watt |
|
|
Uses: |
places where a lot of
light is needed such as outdoor areas and retail shops.
Used frequently in sports arenas, stadiums, auditoriums,
and convention halls |
|
|
Notes: |
not to be used near
flammable materials. Bulbs usually must burn in a
certain position. |
|
|
|
(TOP) |
|
|
LED |
|
Life span: |
30,000 - 80,000 hours
(100,000 hours) |
|
|
Pros: |
High durability - no
filament or tube to break; long life span; low power
consumption; low heat generation |
|
|
Cons: |
Pays
for itself immediately |
|
|
Efficiency: |
80 - 200 lumens per watt |
|
|
Uses: |
wide variety of uses
including general lighting, accent lighting, decorative lighting,
home, parks, shopping centers, streets and highways.
(Uses are unlimited) |
|
|
Notes: |
LED technology is
relatively new, and is changing every day. The quality
and efficiency of the bulbs / chips are improving all
the time.
The ratings in parentheses (above) are the predicted
improvements which are expected to come about within the
next few years. |
|
|
|
(TOP) |
|
|
Mercury Vapor |
|
Life span: |
1600 - 6000 hours |
|
|
Pros: |
more efficient than
incandescent and halogen; gives a nice color to
landscapes. |
|
|
Cons: |
lowest efficiency of the
HID type bulbs; dims rapidly; bad color rendering |
|
|
Efficiency: |
20 - 63 lumens per watt |
|
|
Uses: |
landscape illumination,
outdoor lighting |
|
|
Notes: |
produce a blue-green light |
|
|
|
(TOP) |
|
|
High Pressure Sodium |
|
Life span: |
18,000 - 24,000 hours |
|
|
Pros: |
extremely efficient, long
lasting, |
|
|
Cons: |
bad color rendering,
produces yellowish light; slowly lose their brightness
with short period of time, operates very hot and
uses a lot of energy. |
|
|
Efficiency: |
60 - 125 lumens per watt |
|
|
Uses: |
very popular for indoor
horticulture, outdoor and industrial applications |
|
|
|
(TOP) |
|
|
Low Pressure Sodium |
|
Life span: |
approximately 16,000 hours |
|
|
Pros: |
one of the most efficient
bulbs there is, long life span. |
|
|
Cons: |
worst color rendering
(monochromatic) of all the bulbs, initial setup can be
costly |
|
|
Efficiency: |
90 - 180 lumens per watt |
|
|
Uses: |
security lighting or
indoor applications like stairwells |
|
|
Notes: |
monochromatic -
all colors under this light appear black, white, or
shades of gray. |
|
| |
|
The customer should be made aware of lamp
efficiencies and operational life in situations
where a lamp is to be left on for long periods of
time or is not easily accessible for replacement.
The energy consumption of a large lighting system is
considerable. For example in a commercial building
the energy costs of the lighting system may be 30 to
50% of the total energy costs. |
|
|
|

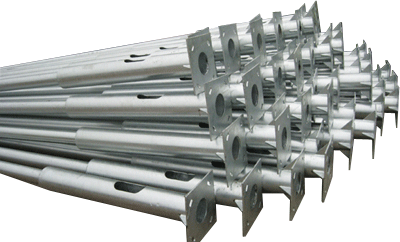

We will make any size
and style street light post to your satisfaction. |
|
|
 |
| |
|
|
|
