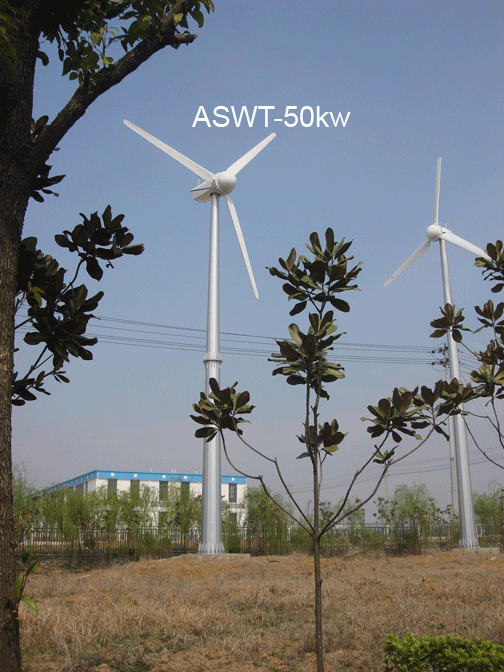

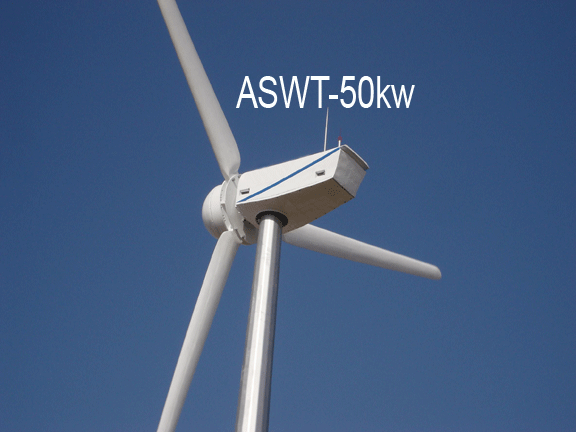

50kW Wind Turbine (ASWT-50kW)


Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW



Model

ASWT.12.0-50KW
Rated Power 50KW
Maximum Output Power (W) 75000
Battery Bank Voltage (Vdc) 400
System output voltage (Vdc) 380
Start-up wind speed (m/s) 2
Rated wind speed (m/s) 11
Working wind speed (m/s) 2.5-25
Survival wind speed (m/s) 50
Generator efficiency >.92
Wind energy utilizing ratio (cp)  0.42
Generator type Permanent Magnet Alternator
Generator weight (kg) 1200
Blade material / quality GRP/3
Blade diameter (m) 12.0
Speed regulation method Yawning + Electromagnetism braking (Optional hydraulic braking)
Shutting down method Manual + Automatic

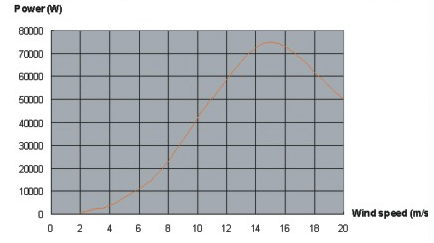

ASWT-50kw Curve
