12V DC Solar Court Yard Lights Plug-N-Play Complete With Battery

Energy savings and life span of 50% to 75% compared to HPS, Halogen, Incandescent.
Rated LED life span is 50,000 to 100,000 hours or equal to 12 years operation time.



Components Technical Specification for model AS-GL052 Remarks
Solar panel Solar cell Mono-crystalline or Poly-crystalline solar cell Life span 20-25 years
Rated power 80W
Vmp / Imp 17.5V/4.75A
Voc / Isc 21.8V/5.13A
Dimension 1200mm*550mm*35mm
Weight 8Kg
Battery Capacity Maintenance free Lead-Acid battery 65AH Life span 3-5years
Rated voltage 12V
Inner Resistance íÍ 5.8mŽŞ
Dimension 349mm*167mm*174mm
Weight 21Kg
Brand Atlantis LED
Light source Rated power 10W x 2pcs, Epistar LED chip, single LED>100lm,colour temperature: warm white 2800K-3200K/neutral white 6000K-7000K.Less than 10% light decay in first 30000hours. Life span 50000hours
Controller Intelligent control for charging and discharging, over-charging and over-discharging protection for the battery. Light and timing control. Life span 8-10 years
Post Heat galvanized 3.5 meters height steel pole with powder coating. Life span 15-20 years
Packing Air bubble bag and cardboard for packing the post. Other components packed in carton.
consecutively work for 8-12 cloudy or rainy days.

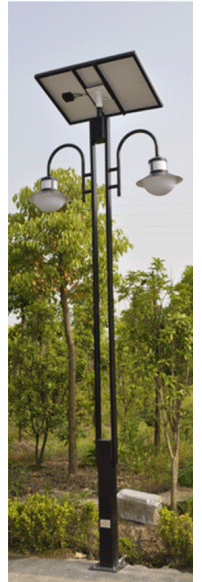

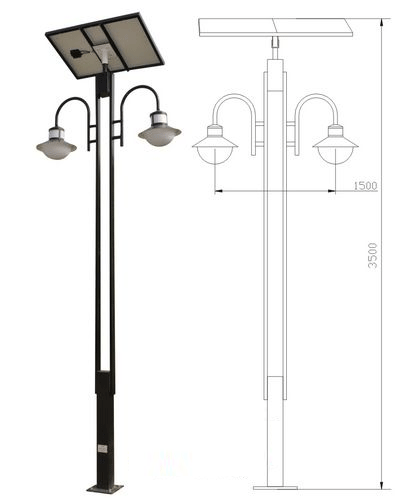

Atlantis Solar  LED Court Yard Light Model AS-GL052


High pressure sodium left versus LED lighting right. LED lighting is closer to true daylight because temperature can be more precisely controlled. True to daylight translates to the perception of greater safety in parking garages. On roadways it means less visual fatigue. In architectural and accent lighting LED's allow improved lighting rendition. LED's start instantaneously and do not flicker or hum. They produce almost no heat and maintenance is reduced because of fewer replacements, and of course the main advantage: they require less energy.



Lighting Efficiency Comparison

Just as an automobile's fuel efficiency is measured in miles per gallon, light bulb efficiency is measured in terms of lumens per watt—the amount of light produced for each watt of electricity consumed. More lumens per watt means more light for your money


Fluorescent (tubular)
Life span: 10,000 - 20,000 hours
Pros: bulb burns cooler; very efficient; can come in various CRI ratings; comes in different color temperatures
Cons: not dimmable; fixtures are more costly; known to flicker at times.
Efficiency: 33 - 100 lumens per watt
Uses: General, floodlights
Notes: frequent switching on and off reduces efficiency.


(TOP)

Compact Fluorescent
Life span: Up to 10,000 hours
Pros: efficient
Cons: cost of bulb; sometimes they can't physically fit; to replace incandescent bulbs
Efficiency: 44 - 80 lumens per watt
Uses: General lighting
Notes: frequent switching on and off reduces efficiency.


(TOP)


Metal Halide
Life span: 6,000 - 10,000 hours
Pros: extremely efficient; give a brilliant light; bulbs come in different color temperatures; good color rendering.
Cons: cost of both fixture and bulb; burns hot
Efficiency: 60 - 125 lumens per watt
Uses: places where a lot of light is needed such as outdoor areas and retail shops. Used frequently in sports arenas, stadiums, auditoriums, and convention halls
Notes: not to be used near flammable materials. Bulbs usually must burn in a certain position.


(TOP)


LED
Life span: 30,000 - 80,000 hours (100,000 hours)
Pros: High durability - no filament or tube to break; long life span; low power consumption; low heat generation.

Pays for itself immediately.

Cons:
Efficiency: 80 - 200 lumens per watt
Uses: wide variety of uses including general lighting, accent lighting, decorative lighting, home, parks, shopping centers, streets and highways. (Uses are unlimited)
Notes: LED technology is relatively new, and is changing every day. The quality and efficiency of the bulbs / chips are improving all the time.

The ratings in parentheses (above) are the predicted improvements which are expected to come about within the next few years.



(TOP)


Mercury Vapor
Life span: 1600 - 6000 hours
Pros: more efficient than incandescent and halogen; gives a nice color to landscapes.
Cons: lowest efficiency of the HID type bulbs; dims rapidly; bad color rendering
Efficiency: 20 - 63 lumens per watt
Uses: landscape illumination, outdoor lighting
Notes: produce a blue-green light


(TOP)


High Pressure Sodium
Life span: 18,000 - 24,000 hours
Pros: extremely efficient, long lasting,
Cons: bad color rendering, produces yellowish light; slowly lose their brightness with  short period of time, operates very hot and uses a lot of energy.
Efficiency:  60 - 125 lumens per watt
Uses: very popular for indoor horticulture, outdoor and industrial applications


(TOP)


Low Pressure Sodium
Life span: approximately 16,000 hours
Pros: one of the most efficient bulbs there is, long life span.
Cons: worst color rendering (monochromatic) of all the bulbs, initial setup can be costly
Efficiency:  90 - 180 lumens per watt
Uses: security lighting or indoor applications like stairwells
Notes: monochromatic -  all colors under this light appear black, white, or shades of gray.


The customer should be made aware of lamp efficiencies and operational life in situations where a lamp is to be left on for long periods of time or is not easily accessible for replacement. The energy consumption of a large lighting system is considerable. For example in a commercial building the energy costs of the lighting system may be 30 to 50% of the total energy costs.
