ASWB - AGM Deep Cycle Model: Applications Solar - Wind - UPS

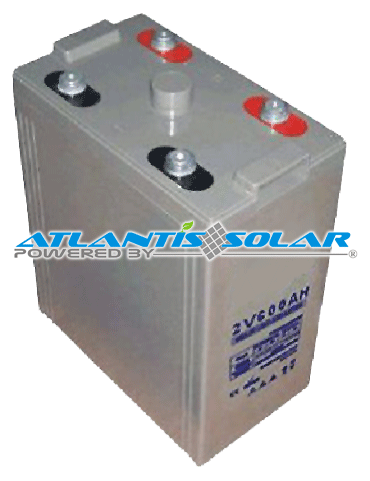

2V600Ah Maintenance Free Sealed Lead Acid Deep Cycle Battery
2V600Ah (UL, CE Certifications, 2 years Warranty)

Menu     12V | 12V~24Ah | 12V~40Ah | 12V~65Ah | 12V~80Ah | 12V~100Ah | 12V~120Ah | 12V~150Ah | 12V~200Ah
    2V | 2V~500Ah | 2V~600Ah | 2V~800Ah | 2V~1000Ah | 2V~1500Ah | 2V~2000Ah | 2V~3000Ah |

*Specifications       Terminal Type: B6
Terminal Material: Copper
Nominal Voltage 2V
Rated Capacity 600Ah
Dimensions ± 2mm Length 301mm
Width 175mm
Height 335mm
Total Height 365mm
Approximate Weight 40.5KG
Capacity
77°F (25 °C)
10h rate (60A, 1.80V) 600Ah
5h rate (101A, 1.75V) 505Ah
1h rate (365A, 1.60V) 365Ah
Internal Resistance  Full charged Battery 0.32mΩ
77oF (25 oC)
Capacity affected by temperature (20h rate) 104OF (40oC) 102%
77 oF (25oC) 100%
32 oF (0oC) 85%
5 oF (-15oC) 65%
Self-Discharge 68oF (20oC) (Capacity after) 3 month storage 91%
6 month storage 82%
12 month storage 65%
Max. Discharge Current  77°F (25°C) 3000A (5s)
Max.Charging Current  77°F (25°C) 120A
Terminal Type & Material  B6 Copper
Charge
(Constant Voltage, 25°C)
Cycle 2.35-2.40V (-5mV/°C)
max. current:120A
Float 2.25-2.30V  (-3.3mV/°C)
Nominal Operating Temperature 25°C±3°C (77°F±5)
Operating Temperature Range -15C~+45C (5°F~122°F)

Remarks:
Please charge the battery for 18 hours at current 60A with voltage limitation 2.4V every three months during stock.
Please do not stock the battery over 1 year, otherwise the capacity & service life of the battery will be reduced

General Features
  • Sealed and maintenance free operation
  • Safety valve installation for explosion proof
  • Low self-discharge characteristic
  • Long service life, the designed service life is 10 years
  • Wide operating temperature range from 15º-40º
  • Lead Aluminum calcium Tin alloy high energy, prevent corrosion
