ASWB - AGM Deep Cycle Model: Applications Solar - Wind - UPS

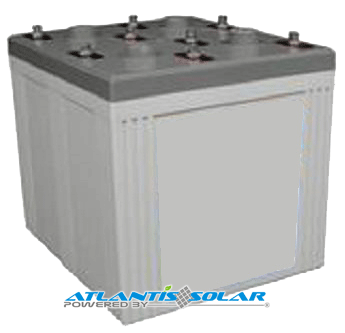

2V1500Ah Maintenance Free Sealed Lead Acid Deep Cycle Battery
2V1500Ah (UL, CE Certifications, 2 years Warranty)
Menu     12V | 12V~24Ah | 12V~40Ah | 12V~65Ah | 12V~80Ah | 12V~100Ah | 12V~120Ah | 12V~150Ah | 12V~200Ah
    2V | 2V~500Ah | 2V~600Ah | 2V~800Ah | 2V~1000Ah | 2V~1500Ah | 2V~2000Ah | 2V~3000Ah |
*Specifications       Terminal Type: B5
Terminal Material: Copper
Nominal Voltage 2V
Rated Capacity 1500Ah

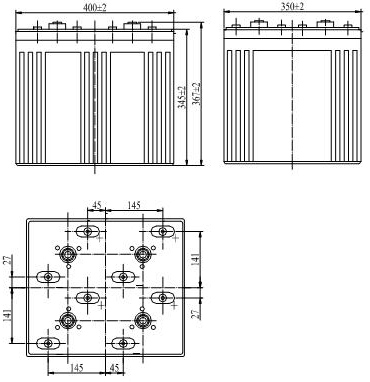

Dimensions 2mm Length 398mm
Width 350mm
Height 341mm
Total Height 381mm
Approximate Weight 102Kg
77F (25 C)
10h rate (150A,1.80V) 1500Ah
5h rate (270A,1.75V) 1350Ah
1h rate (930A,1.60V) 930Ah
Internal Resistance  Full charged Battery 0.13mΩ
77oF (25 oC)
Capacity affected by temperature (20h rate) 104OF (40oC) 102%
77 oF (25oC) 100%
32 oF (0oC) 85%
5 oF (-15oC) 65%
Self-Discharge 68oF (20oC) (Capacity after) 3 month storage 91%
6 month storage 82%
12 month storage 65%
Max. Discharge Current  77F (25C) 4000A (5s)
Max.Charging Current  77F (25C) 300A
Terminal Type & Material  B5 Copper
(Constant Voltage, 25C)
Cycle 2.35-2.40V (-5mV/C)
max. current:300A
Float 2.25-2.30V  (-3.3mV/C)
Nominal Operating Temperature 25C3C (77F5)
Operating Temperature Range -15C~+45C (5F~122F)
Please charge the battery for 18 hours at current 150A with voltage limitation 2.4V every three months during stock
Please do not stock the battery over 1 year, otherwise the capacity & service life of the battery will be reduced
General Features
  • Sealed and maintenance free operation
  • Safety valve installation for explosion proof
  • Low self-discharge characteristic
  • Long service life, the designed service life is 10 years
  • Wide operating temperature range from 15-40
  • Lead Aluminum calcium Tin alloy high energy, prevent corrosion
