ASWB - AGM Deep Cycle Model: Applications Solar - Wind - UPS

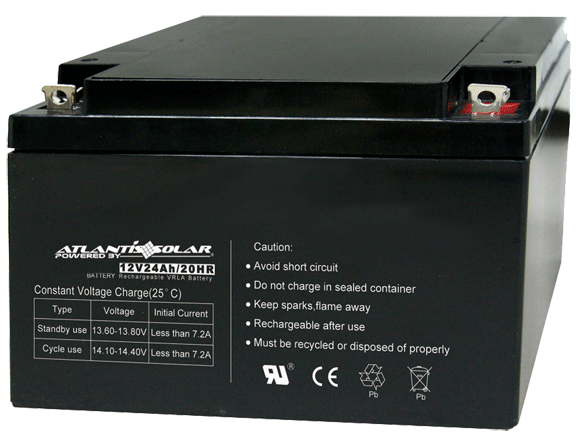

12V24Ah Maintenance Free Sealed Lead Acid Battery
12V24Ah (UL, CE Certifications, 2years Warranty)

Menu     12V | 12V~24Ah | 12V~40Ah | 12V~65Ah | 12V~80Ah | 12V~100Ah | 12V~120Ah | 12V~150Ah | 12V~200Ah
    2V | 2V~500Ah | 2V~600Ah | 2V~800Ah | 2V~1000Ah | 2V~1500Ah | 2V~2000Ah | 2V~3000Ah |


*Specifications for Deep Cycle Battery 12V24Ah
Nominal Voltage 12V
Rated Capacity 24Ah
Dimensions Length 175mm
Width 166mm
Height 125mm
Total Height 125mm
Approximate Weight 7.32Kg
Capacity
68F (20 C) to 1.70V/Cell
20h rate 24Ah
10h rate 22.3Ah
5h rate  20.4Ah
1h rate  15.1Ah
15 min rate  11.1Ah
Internal Resistance Full charged Battery 12mΩ
77oF (25 oC)
Capacity affected by temperature (20h rate) 104OF (40oC) 102%
77 oF (25oC) 100%
32 oF (0oC) 85%
5 oF (-15oC) 65%
Self-Discharge 68oF (20oC) (Capacity after) 3 month storage 91%
6 month storage 82%
12 month storage 65%
Max. Discharge Current 360A (5s)
Max.Charging Current 7.2A
Terminal Material Copper
Terminal Type T3
Charge
(Constant Voltage, 25C)
Cycle 14.4-14.7V(-24mV/oC)
max. current:7.2A
Float 13.6-13.8V(-18mV/oC)
Nominal Operating Temperature 25C3C (77F5)
Operating Temperature Range -15C~50C(5F~122F)
