Atlantis Solar® and Wind Turbines :

"High Quality at Unbeatable Prices and Built to Last"

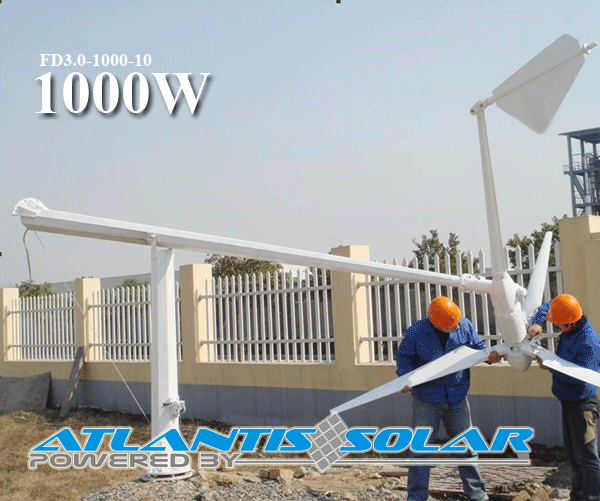

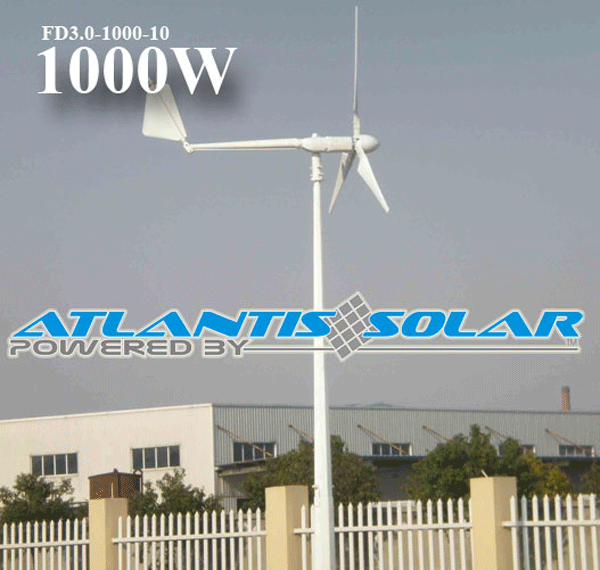

500W to 20kW Wind Turbines (FD3.0-1000-10 Model)
Wind Turbine Menu
500W 1000W 1500W 2000W 5000W 10kw 15kW 20kW 30kW



FD3.0-1000-10 --1000W TECHNICAL PARAMETER
Rated power （KW）

1

Material of the blades

Fiberglass-Reinforced Plastics * 3
Rated wind speed (m/s)

9

Speed regulation method

Yawing and electric magnet brake
Startup wind speed (m/s)

3

Generator style

3-phase AC PM
Working wind speed (m/s)

3~25

Tower height (m)

6
Survived wind speed (m/s)

50

Stop method

Brake by hand

Rated rotate speed (r/min)

400

Main machine weight (kg)

90

Rotor Diameter (m)

3.2

Guyed tower weight (kg)

90

Working voltage（v）

DC48V/240V/AC220V

Freestanding
tower weight (kg)

180

Annual power generation
(KWH)

1000/3000

Note：

1. This price excludes the Battery.
2. AA Tower:：Guyed tower, special anticorrosion, steel and iron material quality; AAA Tower：Freestanding tower,
special anticorrosion, manganese steel material quality, more convenient installment, artistic, the occupying a land
area of is small.
3. Wind turbine includes: Blade, Generator, Hub, Rotary body, Tail rod, Tail vane and so on.
4. Tower & accessory includes: Tower pole, Bolt, Foundation bolts, Orientation plate, Cable and so on.
