Atlantis Solar® and Wind Turbines :

"High Quality at Unbeatable Prices and Built to Last"

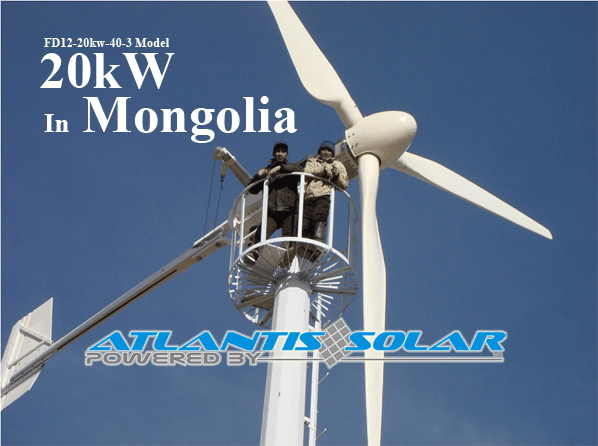

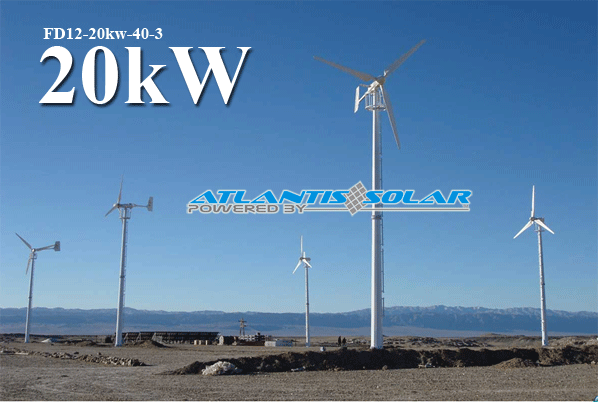

500W to 20kW Wind Turbines (FD12-20kw-40-3 Model)
Wind Turbine Menu
500W 1000W 1500W 2000W 5000W 10kw 15kW 20kW 30kW
 20kW

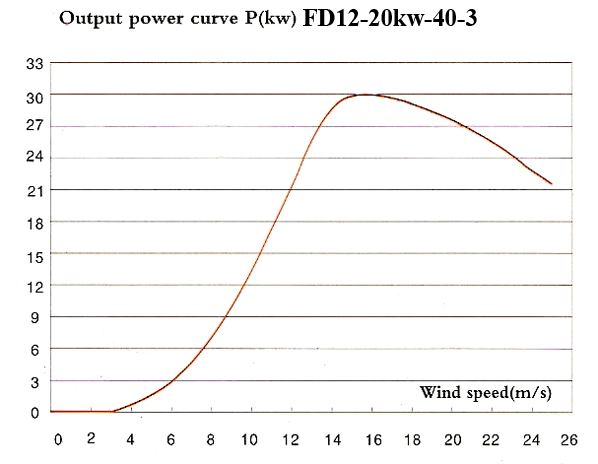

FD12-20kw-40-3 TECHNICAL PARAMETER
Rated power （KW）/ Max

20

Material of the blades

Fiberglass-Reinforced Plastics * 3
Rated wind speed (m/s)

12

Speed regulation method

Adjustable-Pitch
Startup wind speed (m/s)

3

Generator style

3-phase AC PM
Working wind speed (m/s)

4~25

Tower height (m)

15
Survived wind speed (m/s)

50

Stop method

Brake by Hand/Automatic
Rated rotate speed (r/min)

185

Main machine weight (kg)

1360

Rotor Diameter (m)

10

Guyed tower weight (kg)

2300

Working voltage（v）

DC500V/AC380V

Freestanding
tower weight (kg)

2900

Annual power generation
(KWH)

20000/60000

Note：

1. This price excludes the Battery.
2. Tower : Freestanding tower, special anticorrosion, manganese steel material quality, more convenient
installment, artistic, the occupying a land area of is small.
3. Wind Turbine includes: Blade, Generator, Hub, Rotary body, Tail rod, Tail vane and so on.
4. Tower & accessory includes: Tower pole, Bolt, Foundation bolts, Orientation plate, Cable and so on.
