Atlantis Solar® and Wind Turbines :

"High Quality at Unbeatable Prices and Built to Last"

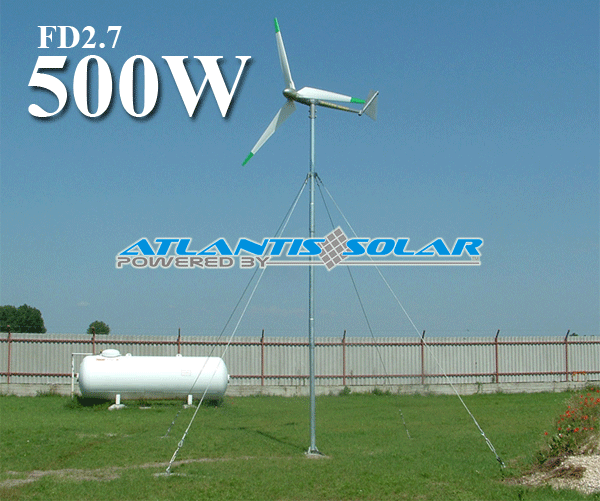

500W to 20kW Wind Turbines (FD2.7-500-10 Model)
Wind Turbine Menu
500W 1000W 1500W 2000W 5000W 10kw 15kW 20kW 30kW



FD2.7--500W TECHNICAL PARAMETER
Rated power （KW）

500 to 750

Material of the blades

Fiberglass-Reinforced Plastics
Rated wind speed (m/s)

8

Speed regulation method

Yawing and electric magnet

brake
Startup wind speed (m/s)

3

Generator style

3-phase AC PM
Working wind speed (m/s)

3~25

Tower height (m)

6
Survived wind speed (m/s)

50

Stop method

Brake by hand

Rated rotate speed (r/min)

420

Main machine weight (kg)

90

Rotor Diameter (m)

2.8

Guyed tower weight (kg)

85

Working voltage（v）

DC24V/AC220V

Freestanding
tower weight (kg)

198

Annual power generation
(KWH)

500/1500

Note：

1. This price excludes the Battery.
2. AA Tower:：Guyed tower, special anticorrosion, steel and iron material quality; AAA Tower：Freestanding tower, special anticorrosion, manganese steel material quality, more convenient installment, artistic, the occupying a land area of is small.
3. Wind turbine includes: Blade, Generator, Hub, Rotary body, Tail rod, Tail vane and so on.
4. Tower & accessory includes: Tower pole, Bolt, Foundation bolts, Orientation plate, Cable and so on.
