Technical Specifications

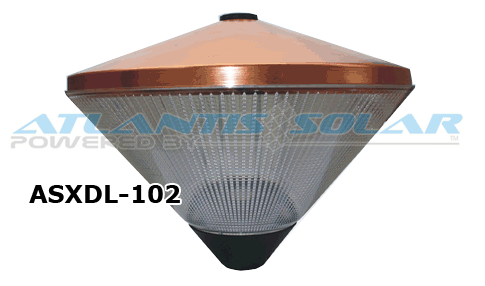

ASXDL-102 luminaire is made of 3 mail parts:
THE DOME made of embossed aluminum anodized insures the overall protection of the luminaire.
THE DOME assembly in stainless steel is held to the flange by means of Zinc coated steel treated rods, access for maintenance is easily achieved by removing the top part of the DOME assembly.
THE DIFFUSER made of frost polycarbonate, A reflector in pure aluminum stamped out in one piece..
THE BASE made of die cast aluminum. onto which the control gear ,lamp and its protection cover are fixed, mounting for a 60mm.
Painted by polyester powder, color on request.
PROTECTION DEGREE:
Optical block IP55
SHOCK ENERGY
20 Joules (polycarbonate bowl)
CLASS I
CLASS II on request
