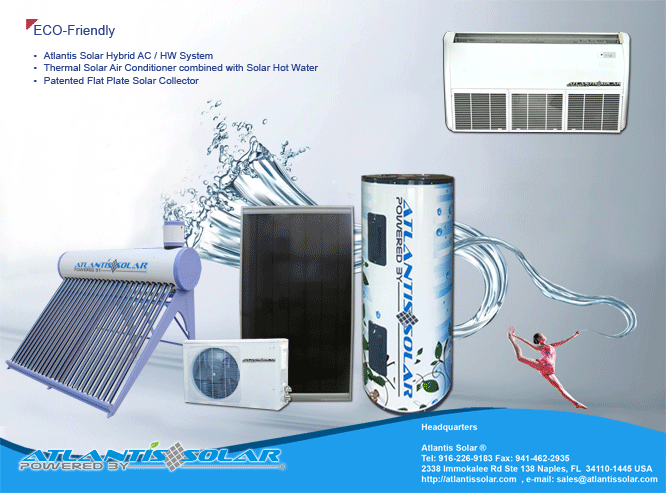

 | | | | | | Thermal Ceiling Floor Solar Air Conditioner combined with Solar Hot water | | |  | The temperature of a traditional water heater is normally 50°C to 80°C. Still water in traditional hot water heaters promote growth of bacteria harmful to drink, and harmful to your skin. Atlantis Solar hot water heaters have significantly improved on the basis of water safety, energy savings and environmental
protection. Our Atlantis Solar hybrid systems continue circulating water with a filtration process reducing the chance of harmful bacteria's
forming inside your hot water tank, making your water more healthier and safe to drink.
| | | Atlantis Solar Hybrid AC - HW Model No. | SK-ACHW-3CF | SK-ACHW3.5CF | | Power Supply：220-240/380VAC, 1/3PH, 50hz / 60hz | | Performance | | | | | | Capacity | Cooling | Btu/h | 36000 | 41000 | | W | 10000 | 12000 | | Heating | Btu/h | 40000 | 46000 | | W | 12000 | 14000 | | Water Tank | L | 300 | 500 | | Hot Water | L | 600 | 1000 | | indoor type | | | floor ceiling | floor ceiling | | Air Circulation | m³/h | 1700 | 1800 | | Suitable Area | m² | 42~67 | 50~80 | | EER | W/W | 3.87 | 3.96 | | Noise | Indoor | dB(A) | ≤51 | ≤53 | | Outdoor | dB(A) | ≤58 | ≤60 | | Hot Water Temp | | ℃ | 50~90 | 50~90 | | Solar Collector | | Vacuum Tube | 18*2 | 24*2 | | Power Consumption | | | | | Power Input | Cooling | W | 2400~2640 | 2900~3150 | | Heating | W | 2470~2650 | 2900~3180 | | Rated Current | Cooling | A | 10.91~11.95 | 13.18~14.32 | | Heating | A | 10.91~12.05 | 13.18~14.45 | | | | There are 3 heat exchange copper coils inside the water tank.
Parameters in the form are measured in the rated working state according to GB/T7725-2004. Changes may appear according to real working state.
Parameters may change due to the product improvement, please refer to the product nameplate.
If the indoor type or the water tank capacity cannot meet your requirement, please kindly contact us for a new quotation
Parameters are measured in the rated working state: when cooling, outdoor unit dry/wet-bulb temperature 35/24 °C , indoor unit dry/wet-bulb 27/19 °C; when heating, outdoor unit dry/wet-bulb 7/6 °C , indoor dry/wet-bulb 20/15 °C. Changes may appear according to real working state.
When tank water temp is <65 °C. Parameters may change due to the product improvement, please refer to products nameplate.
Note: (Optional) “HEATING IS ADDITIONAL PER SYSTEM”
“IMPORTANT” Standard Freon is R22, for EU Compliant is an additional fee per unit for 410A.
Replacement Freon for R22, safe for the environment is Dura cool R290 or 22A
