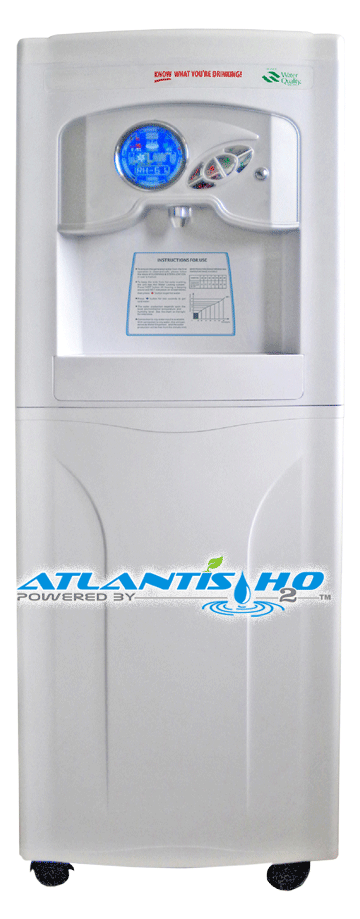

Atmospheric
Water Generator -
Newest model
28L/24H Inverter
compressor
*Specification:
Model Number:ASWRHB-88HR(B)
Total Wattage:800-950W
Heating Wattage:500W
Cooling Wattage:380W
Cold Water Temperature:4-10℃
Temperature of Hot Water:75-93℃
Refrigerant Type:
R134a/330g (environmentally
friendly)
Production Capacity: (30℃, humidity
80%):
28L/24H
Storage Capacity: 12.5L
SS (stainless steel) bottom tank:
2.82L (Maximum) and 1.8L (Effective)
Purified water tank:6.82L
Cold tank:2.76L
Temperature Range:15’C-40’C
Humidity Range: 35%-95%
Noise Level: <60DB
Net Weight: 50Kgs
Gross weight:53Kgs
Machine size:40*41.5*112.4cm
Carton Packing
Size (CM):46*43*116.5cm
Plywood Packing
Size (cm):48*46*117.8cm
Sample charge: Extra $200 ($200 will
be refunded once next order is
successful)
Warranty: One year for the whole
machine and two year for the
compressor
Delivery time:30-35 days
Sample delivery time:7-10 days upon
receipt your 100% payment
For container order,1% spare parts
free of charge will be included
Certificate: CE Approval for unit
and water test approval
ASWRHB-88HR(B)
(B) means it is inverter
compressor
Inverter Compressor Advantages:
1. Energy saving of 25~30% in water
cooling.
2. Less noise during low ambient
temperature and low relative
humidity weather condition.
3. Can reduce noise level by
adjusting the frequency, but will
sacrifice one liter of water
production per 5 db, maximum
reduction of 10 db.
4.Lower dew point of 14 degree
ºC
(machine can still generate water
during lower ambient temperature so
as to improve overall capacity,
regular compressor has a dew point
of 19
ºC
degrees, the machine will start
defrosting.
5.Longer compressor life span.
Inverter Compressor Disadvantages:
1.Higher manufacturing cost because
a special high-tech inverter circuit
board and named brand compressor
(Mitsubishi)
2.Noisier at high relative humidity
and ambient temperature level
The Atmospheric Water Generator is a
humidity and temperature driven
machine. This means the machine
totally depends on the level of
humidity in the air and the
temperature to produce water.
Ideally , the humidity level should
be at least 50% or above to achieve
the machine’s optimum performance.
In places with lower humidity level,
the machine will still produce
water, but not as quickly, nor as
much as in places with high level of
humidity.
Higher
level of humidity most commonly near
an open window or lower level
basement. |
