Technical
Specifications :
|
|
|
Features :
|
|
230V /
50Hz
|
- Electrical - |
110V / 60Hz |
|
|
|
|
|
-
Cooling power: 11,500 BTU /Air
Volume 420 cubic meter per hour |
|
| |
|
|
|
|
-
Power Consumption:
Cooling
1,400 W/
Heating
900 W |
|
|
|
|
-
Heating power: 11,000 BTU /Air
Volume 420 cubic meter per hour |
|
| |
|
|
|
|
-
Type of refrigerant: R410A
filled in 550 grams |
|
|
|
|
- Built in temperature/humidity
sensor |
|
| |
|
|
|
|
-
Thermostat (18ºC~32ºC setting)
built in with temperature
monitor display. |
|
|
|
|
- 40%~80% humidity setting |
|
| |
|
|
|
|
-
Rotary compressor 44A263A fitted |
|
|
|
|
-
Pre-filter removes dust and
eliminates larger floating
pollutant particles |
|
| |
|
|
|
|
- Very
suitable room size : 36 square
meters or 380 square feet |
|
|
|
|
-
Dehumidifying capacity at 30C/
80% RH : 60 Liters/day |
|
| |
|
|
|
|
-
EER :
2.22
energy label adhered with
A
grade |
|
|
|
|
| |
|
|
|
|
-
dB level: below 57 (cooling) &
below 58 (heating) |
|
|
|
|
| |
|
|
|
|
-
Product dimension : 324 (W) x
520 (D) x 764 (H) mm |
|
|
|
- Auto Louver setting at 80
degree sweeping |
| |
|
|
|
|
-
Package dimension : 380 (W) x
725 (D) x 788 (H) mm |
|
|
- Three wind speeds “L”
"M" “H” |
| |
|
|
|
|
- 20’ loaded 144 units/ 40’
loaded 288 unit (All with
accessories) |
|
|
-
Maximum 24 hours timer setting. |
| |
|
|
|
|
- With Remote control. |
|
|
- With Remote control |
| |
|
|
|
-

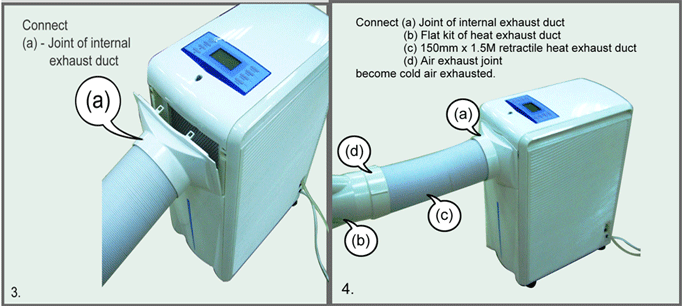

Accessories included: (a) Flat
kit of heat
exhaust duct / 1
A. Flat kit of heat exhaust duct
/ 1
B.
150mm x 1.5M retractile heat
exhaust duct / 1
C. Air exhaust joint / 1
D. Adjustable fixing panel / 1
C. 2 meters water drainage hose
/ 1
E. Remote control transmitter &
2 batteries
G. User's manual
-
Package weight:
N.W.: 30.0 kgs/G.W.: 35.6 kgs |
|
|
|
